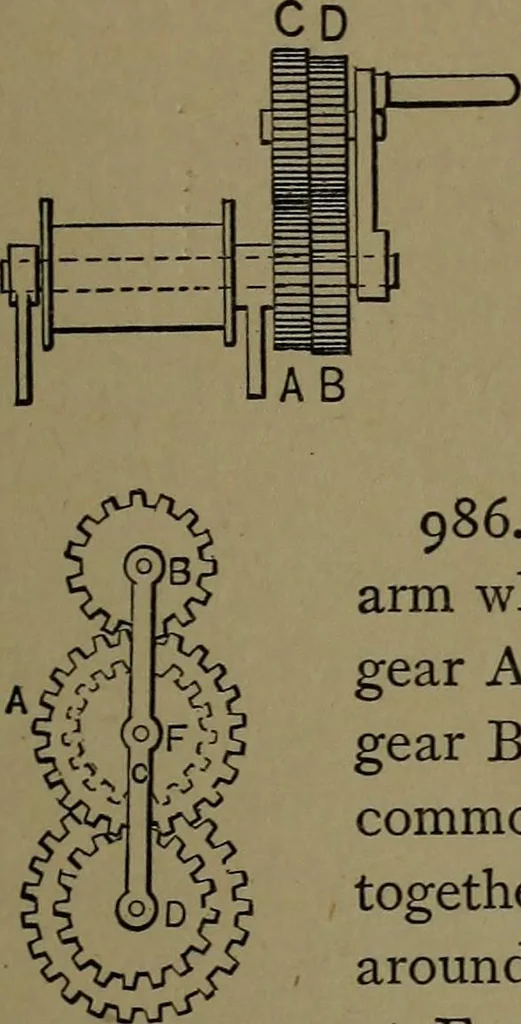

C, D revolves. 986. EPICYCLIC GEAR TRAIN.—C is the trainarm which may revolve around its centre at F. Thegear A is fixed. The pinion F is fast to a spindle. Thegear B turns on its own axis as it revolves around thecommon centre. The two pinions at D are fastenedtogether and revolve around their own… … 987. COMPOUND EPICYCLIC TRAIN,more curious than useful, but illustrating thechanged conditions of gear motion. Gears a andh are fixed to the crank shaft. Gears g and Jare fixed to a hollow shaft turning on the shaftn m. Gears e, h are fixed on a hollow shaft andturn on shaft n in. The arm y^ / is…
