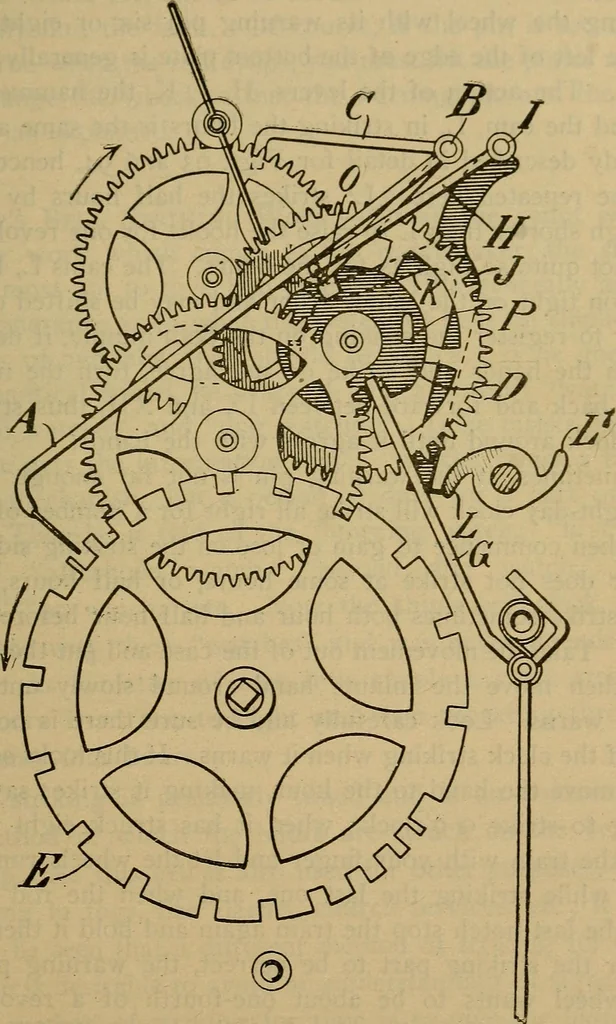

n top of the wheel for the strokes of the hour.Fig. 96 shows its position after striking the half hour andready to strike the hour of two. Fig. 97 shows it droppingback after striking two. In setting up this train, see that the count hook, A, goesinto the slot of the count wheel close to, but not… … Fig. 97. Half hour strike on the count wheel. 312 THE :modern clock. with the warning pin, O, safely to the left of the hook C,Fig. 97, so that it cannot get past that hook after striking.Placing the wheel with its warning pin six or eight teethto the left of the edge of the bottom plate is…
