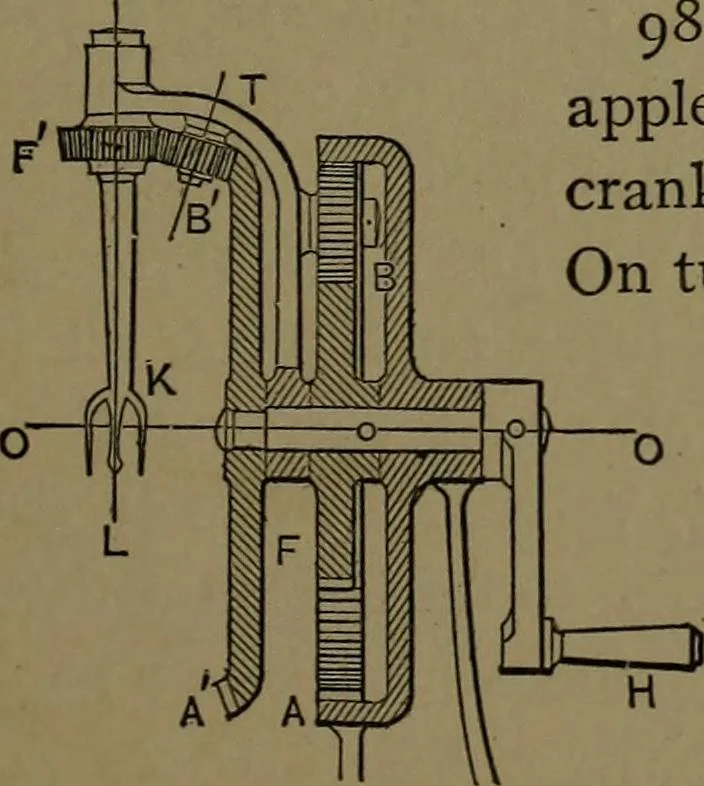

988. PLANETARY MOTION applied to anapple-paring machine. The gear F is fixed to thecrank shaft. The internal spur gear A is stationary.On turning the crank the pinion B rolls forward,carrying the arm^ T at half the velocity ofthe crank. The bevel gear A revolves withthe crank, driving the spindle K…
