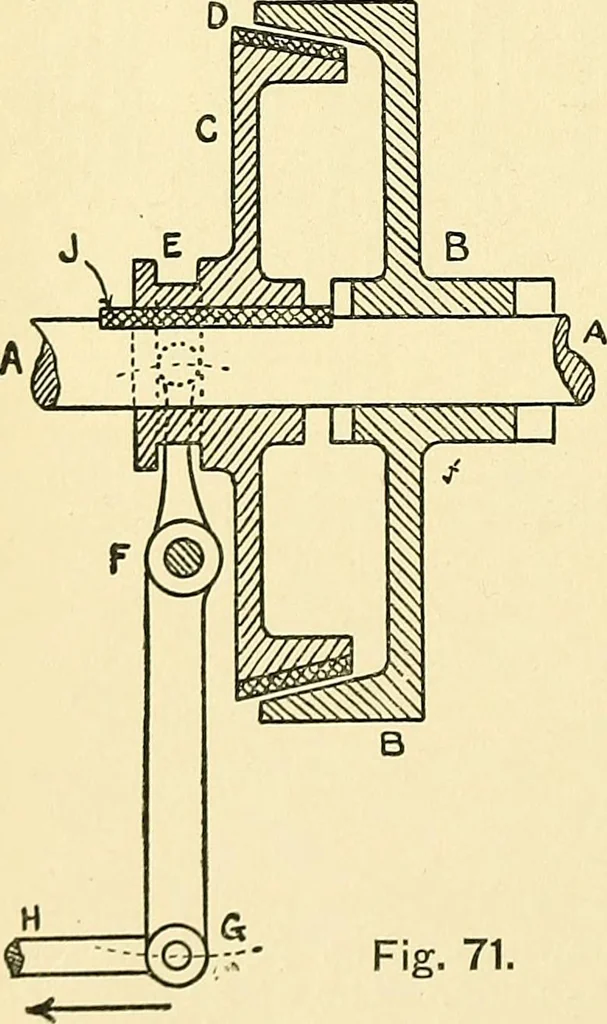

he samefigure, whereby motion can beimparted to the scroll-shaftW at desired intervals oftime by putting the frictioncones P and V into contactand driving through thebevel wheels Q and R. Aforked lever is arranged tooperate the cone clutch atthe groove D.A simple type of friction clutch is shown in… … TEXTILE MECHANICS 59 effect in moving the shaft. A conical dish form is turned onone side of B and a leather-covered conical surface plate or discC of the same taper is mounted on the shaft A by means of afloating key; that is, the key J is fixed in the shaft, and C has aslot cut in its boss so…
