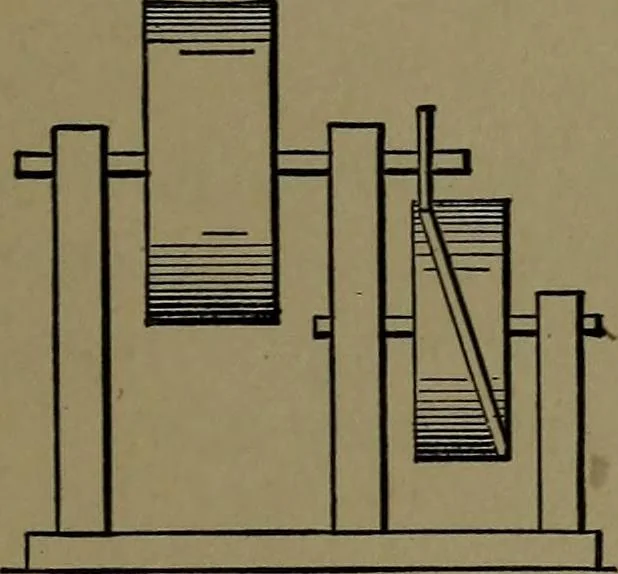

■CZ3 1084. GEAR-DISENGAGING CAMLEVER. — The eccentric slot in the leverthrows the slow driving gear out of lock bythrowing the lever back. 1085. OBLIQUE DISC MOTION.—A disc fixed at an angle upon the end of a shaft gives avariable rectilinear motion to a rod and roller byvarying its distance from… … 1087. TRAVERSE MOTION of a shaftby a rolling cam. The disc, rolling in thegroove of the drum, gives an ever-varyingtraverse motion to the disc shaft, according tcthe proportions of the size of disc and camdrum. 1088. FOUR-MOTION FEED of the Wheeler & Wilson,and other sewing-machines. The…
