Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 282

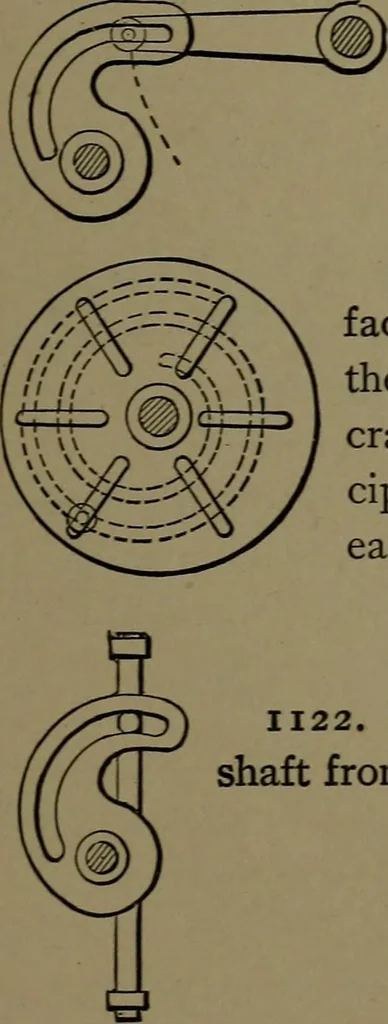

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 282
on and near the central line of the two shafts. 1120. VIBRATING MOVEMENT from a slotted curved arm, gives a variable vibratingmovement to straight arm. 1121. VARIABLE CRANK PIN.—A slottedface plate backed by a spiral slotted plate by whichthe revolution of one plate upon the other moves acrank pin…
