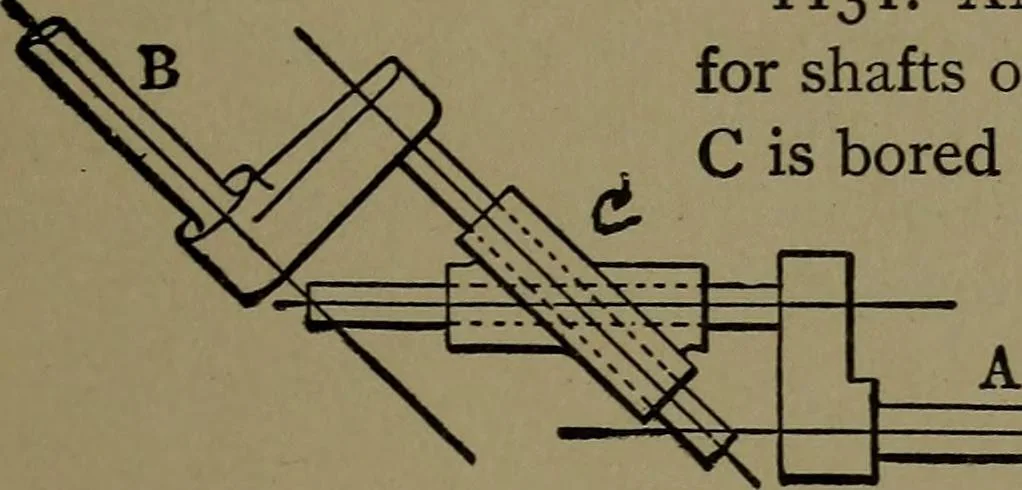

1130. RECTILINEAR MOTION fromthe rotation of an angular crank pin. A,rotating shaft carrying crank pin E; D,arm with sleeve jointed to yoke and slidingrod B. 1131. ANGULAR SHAFT COUPLING for shafts out of line. The solid sleeve blockC is bored at the same angle of the shafts,and centres of bores at…
