Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 293

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 293

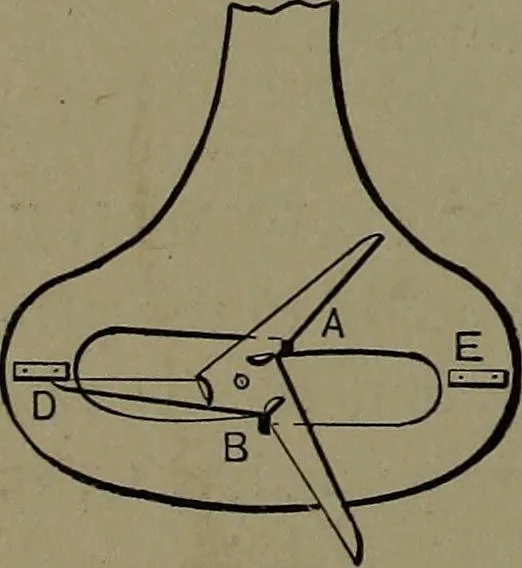

1162. SINGLE-PIN PENDULUM ESCAPEMENT.-—The pin is set in a small face plate close to the arbor,which makes a half-rotation at each stroke of the pendu-lum. The impulse is given on the vertical faces of thequarter sections in the pendulum. … 1163. THREE-TOOTHED ESCAPEMENTwith long teeth and stops on the pendulum frame.A, B, pallets; E, D, stops. A nearly dead-beatmovement. 1164. DETACHED PENDULUM ES-CAPEMENT.—In this movement the pendu-lum is detached from the escapement, exceptat the moment of receiving the impulse fromthe single…
