Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 158

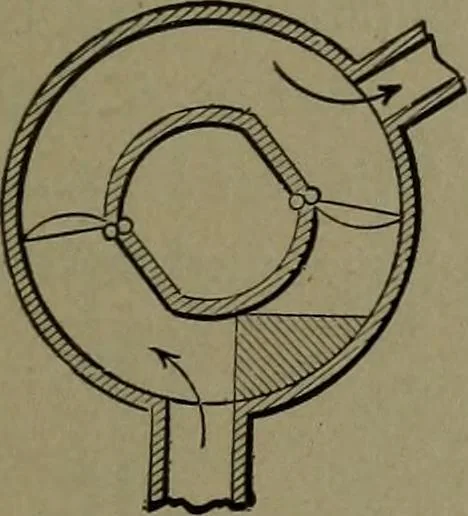

542. COCHRANE ROTARY PUMP.- A slide pocket in the outer shell receives the pistonwing of the inner eccentric cylinder, which swingsin contact with the shell on its centre, 2, carriedaround by a cam crank. … 543. One of the early forms of Rotary Pumps.Only suitable for free flow to the pump. Will notlift. Obsolete. 544. HYDRAULICTRANSMISSION OFPOWER.—A driving rotarypump connected by a flow and return pipe to a driven rotarv motor at any convenient distance. Has been applied to bicvcles.
Mechanical movements
