Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 319

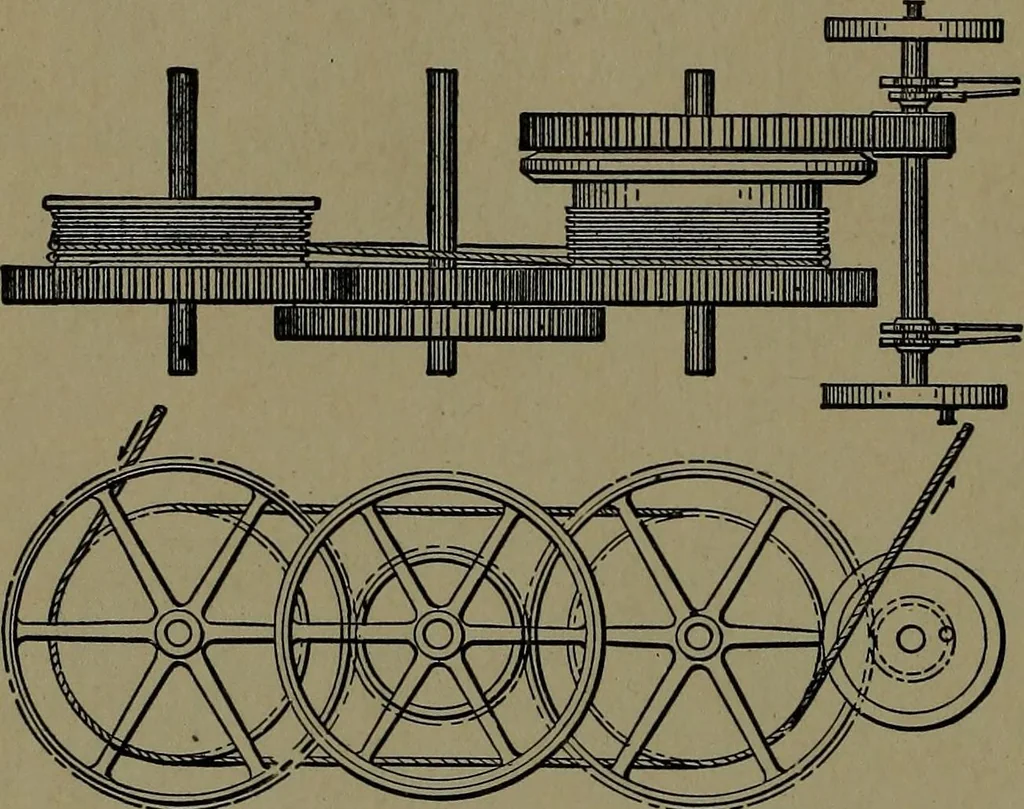

1259^. GARBAGE FURNACE.—Plan and elevation. The garbagefalls through openings at the topand is divided on a curved partinghearth and dried by the heat of thefire on the grate and then slides orto the grate to be burned. Coalmay also be used to facilitate theburning. Plan and vertical section. 312… … HAULAGE.—Twogrooved drumswith gears and anintermediate b a 1 -ance gear and fly-wheel. The driv-ing shaft geared tothe hauling drum;brake wheel andband on the samedrum shaft. Shaftsare horizontal. Plana.id side view. 1259^. AIR BLAST FOR MOVING COAL, slack and dust. An engine and directconnected…
Mechanical movements
