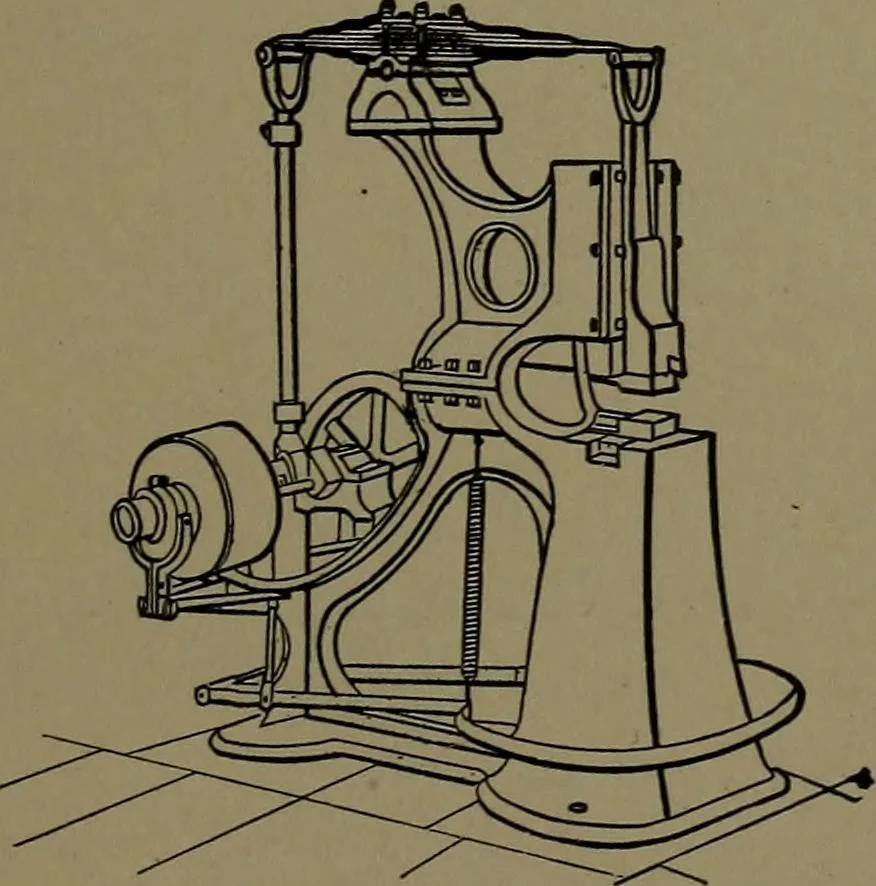

1366. BEAM TRIP HAMMER.—The beam is vibrated by an ec-centric on the driving shaft. Thecushions intensify and regulate theblow of the hammer. The treadleoperates the brake and controls theblow of the hammer. Bradleypattern. … 1367. SPRING HAMMER.—Theheight of the hammer, to suit the sizeof the forging, is adjusted by chang-ing the length of the connecting rod.The treadle controls the stroke byoperating a friction gear on the driving pulley.
