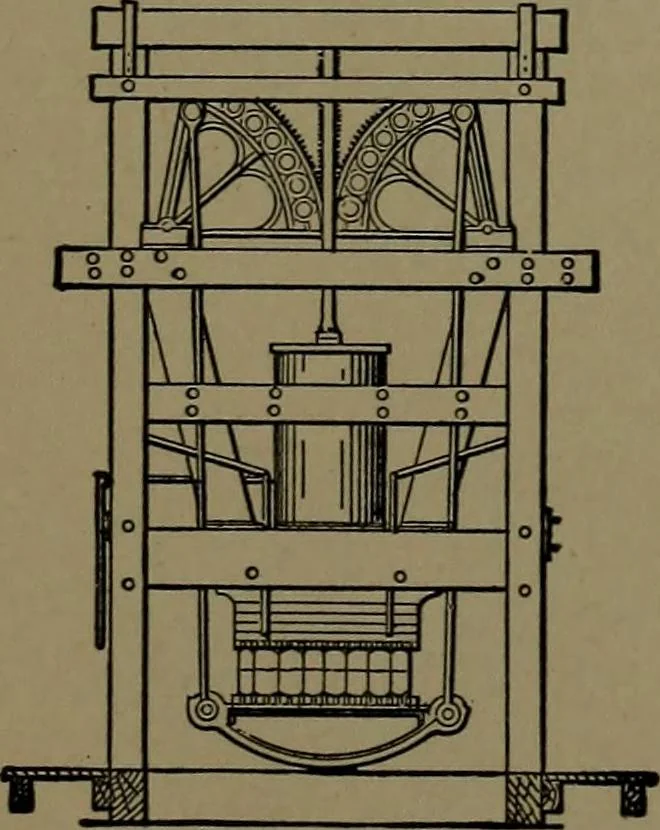

1432. DOUBLE TOGGLE-J O I N TSCREW PRESS with steam-heated plat-ens for vulcanizing rubber or embossing byheat and pressure … 1433. STEAM COTTON PRESS, forrepressing and condensing baled cotton.The geared sectors, driven by the double-rack piston rod and piston, increase thepressure immensely at the latter part oithe stroke by the toggle-joint action ofthe connecting rods as they approach theradial bearing of the sectors.…
