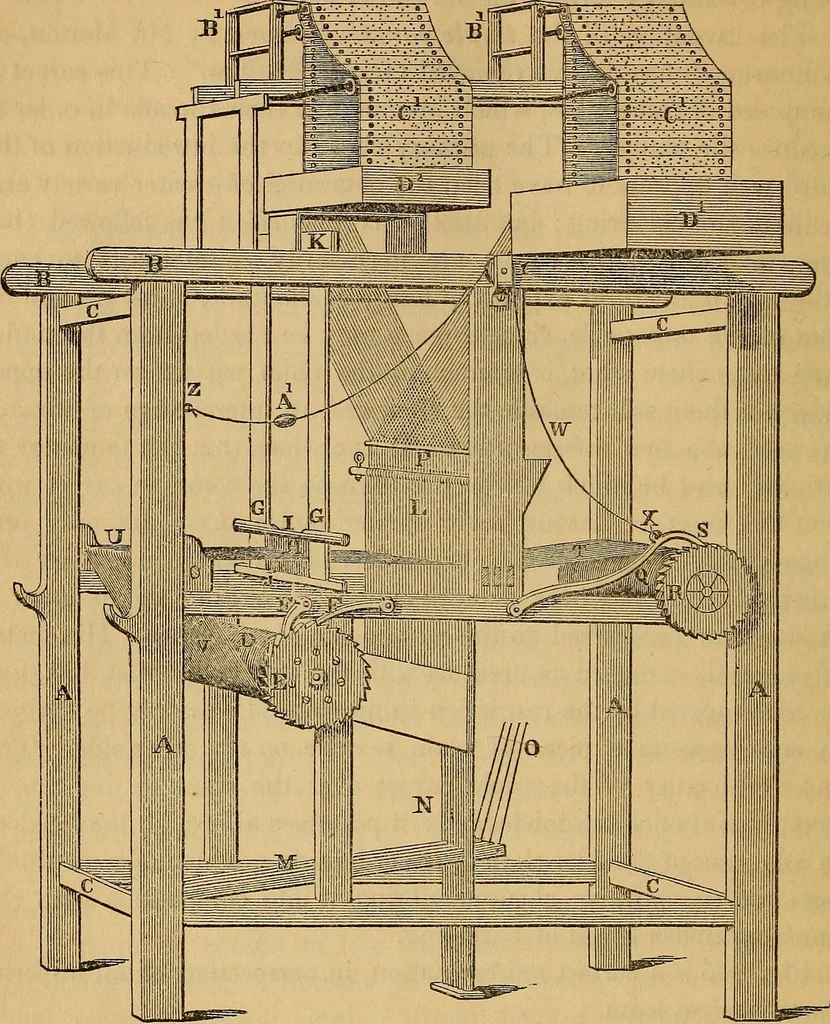

, v/ith an iron gudgeon off ths of an inch in diameter driven into each end of it, in the usualway; on one of these ends a ratchet wheel E is fastened, which isoperated upon by two clicks F F, for the purpose of holding theweb in its proper place when wound upon the roller by the weaver, * Mr. M.… … in a similar manner to that formerly described in section Ist underthe head of piain weaving ; G G is the lay or batten ; H tlie reed ;I the lipper shell to hold the reed; J the under shell or sill of thelay ; K the rockin g tree or cross bar, which connects the lay swordsGG above, as in Fig. 9,…
