Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 405

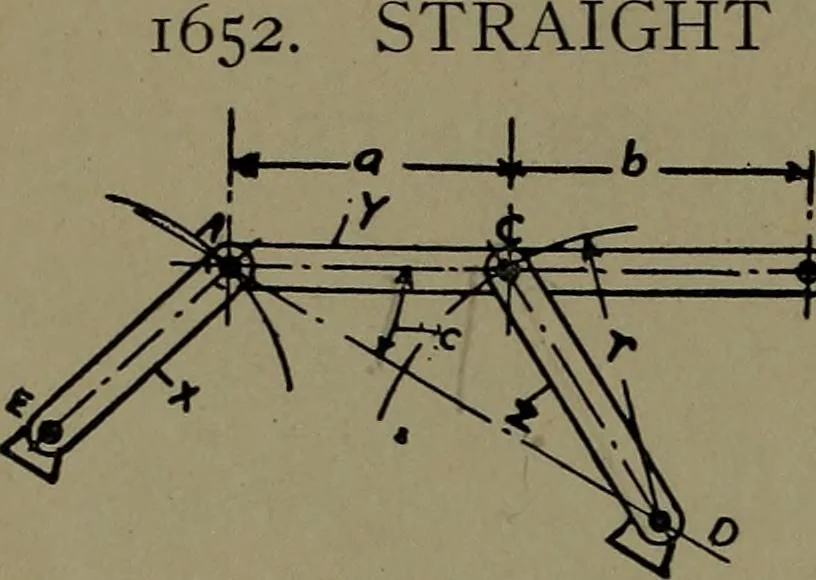

at ECE- right angle^. 398 STRAIGHT LINE MOVEMENTS. LINE MOTION WITH TWOLEVERS AND ONE LINK.—Levers X and Z are connected byi^/^link Y. X is a lever pivoted at Eand connected to F at ^. Z is alever pivoted at D and connected toy at C. F is a link connected toX 2it A and to Z at C, the end B moving… … 1653. STRAIGHT LINE MOTION WITH ONE^P LEVER AND A SLIDINGI LINK.—Lever Z is connect-ed to a sliding link Y. Z ispivoted at D and connected toj2 link Y 3.1 C. F is a link con-nected to Z at C and to asliding block at A, the other end of which is at B, and moves ina straight line as at 6^.
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
