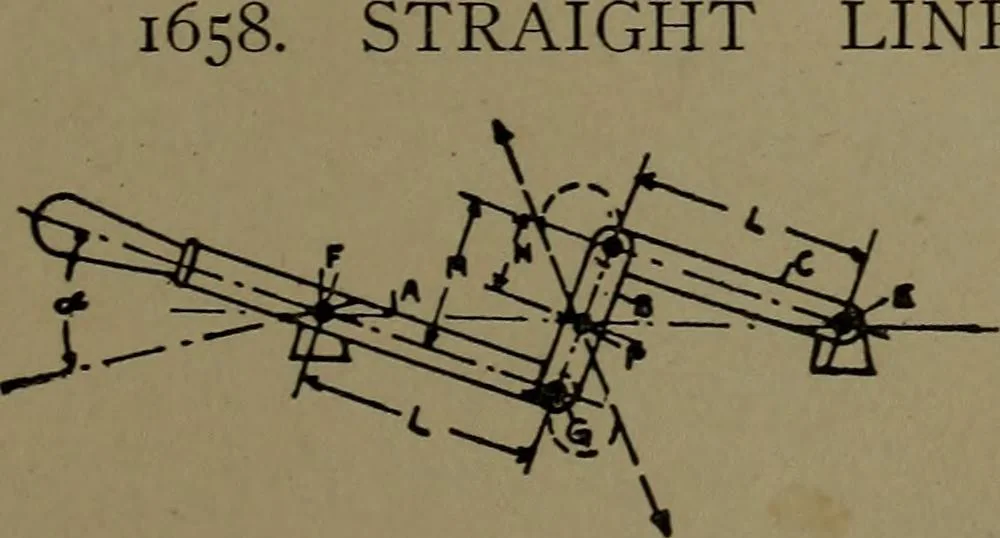

at Dand connected at E to link K.Lever / is pivoted at G and con-nected to link K at F. The point P, when B is twice A and C is half oi A, will move in a straight line of 28 degrees. ^^ LINE MOTION WITH TWOLEVERS AND ONE LINK.—Levers A and C connectedby link B gives 26 degrees ofstraight line… … 400 STRAIGHT LINE MOVEMENTS. h-^H/ 1659. STRAIGHT LINE MOTION IN OPPOSITEDIRECTIONS WITH THREE LEVERS AND TWO LINKS.—^This movement, designed for a double throw oil switch, con-sists of a lever B pivoted at C connected to link E dX D and to link G at F. Link E, pivoted toB at D, is connected to a…
