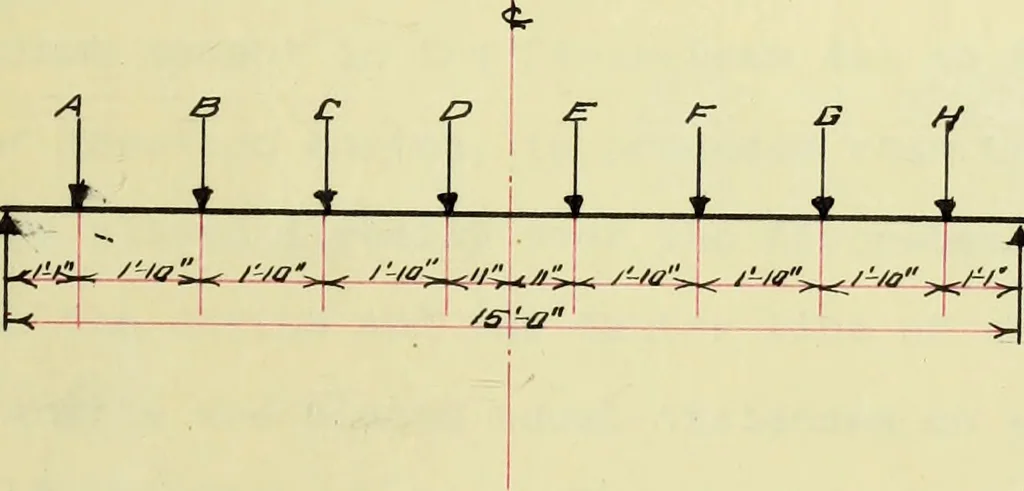

vets.Two of these rivets will be used in the connecting angle on*s&e ofthe joist. 23, b. The Floor-Beam, fhe length of the floor beam is assumed to be equal tothe distance between trusses, or 15 feet. These beams will alsobe composed of steel I-beams, the weight of which was found, by atrial… … Fig,;4« Positions of Loads on Floor-Beam. The joist transmits to the floor-beam the weight of thefloor and the weight of the joist itself, which are 540 and 630pounds respectively. The end reaction, or maximum shear, due tothis loading is : 540 + 650 x 8 a 4>680 pounds. The bending moment in the…
