Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 41

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 41

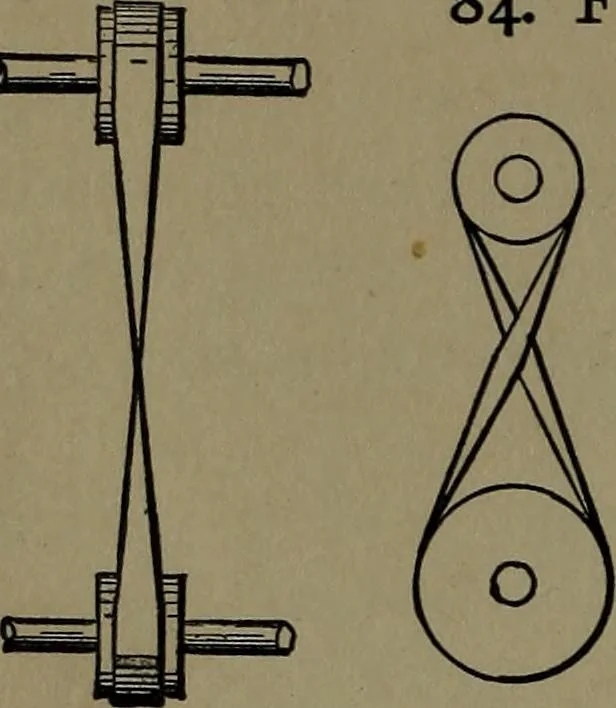

Ss. QUARTER TWIST BELT.—The arrows showthe direction the belt should run. 54 TRANSMISSION OF POWER. … 84, FULL TWIST BELT, or cross belt 85. FULL TWIST OR CROSS BELT,for reverse motion on driven shaft.
