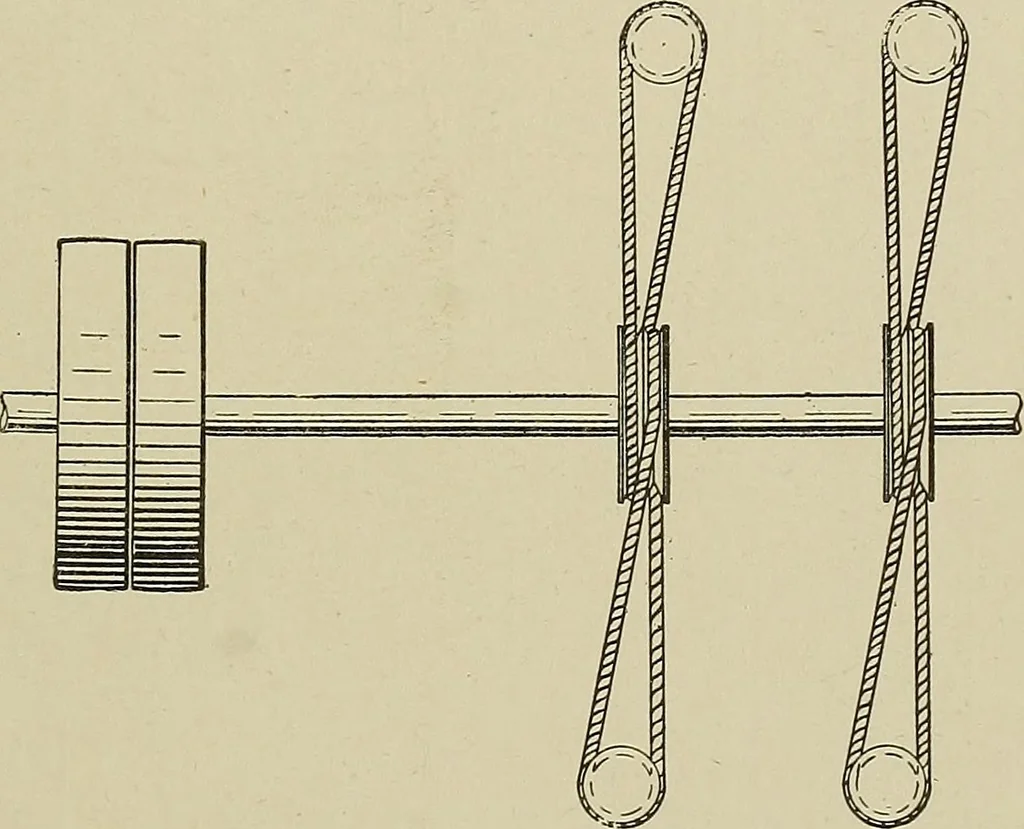

of the machine, on which are the band pulleys driving the spin-dles ; each pulley has a double groove, as it drives a spindle oneither side of the machine, transmitting with a round cotton band-ing, a separate band to each spindle, as in Fig. 3. Building Motion. At one end of the shaft is the… … Fig. 3. Spindle Drive Showing Pulleys and Bands. the end of the frame is a jackshaft on which, outside the end frameand close beside the belt pulley, is a pinion gear meshing into awheel gear that drives, on its shaft inside the frame, an unusualarrangement of gears — double gears — so arranged…
