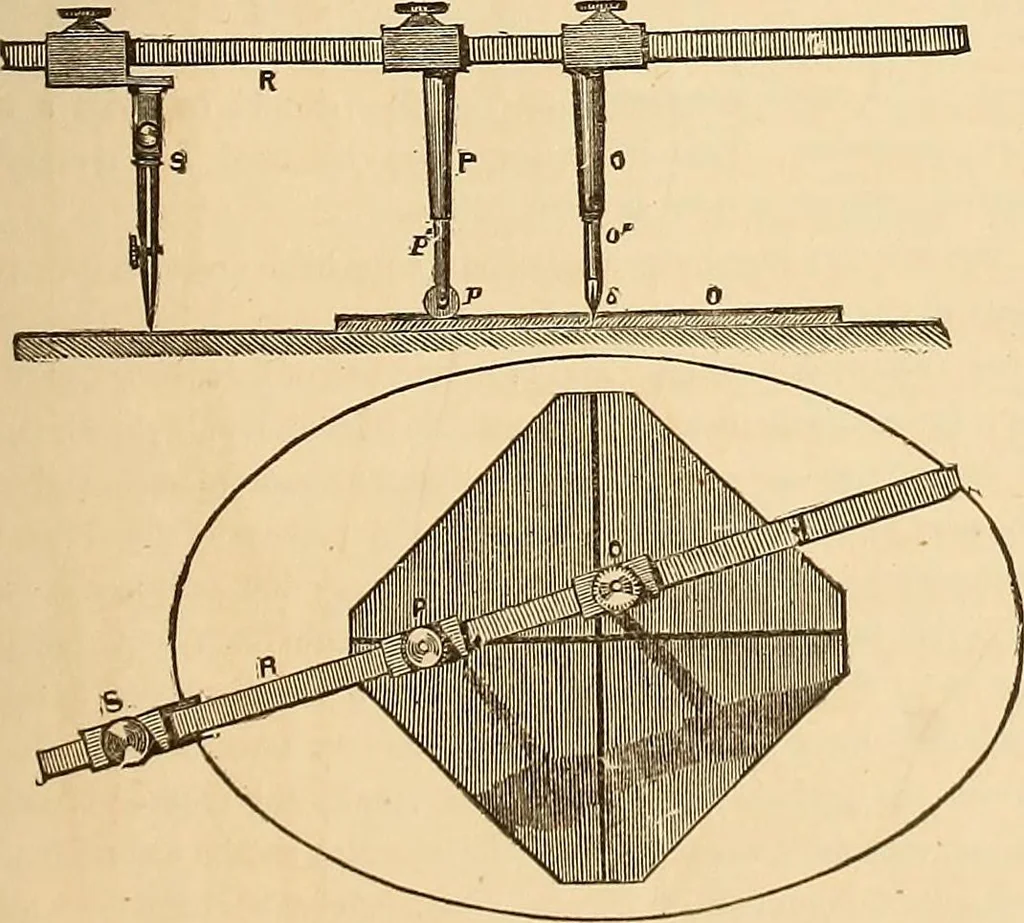

s, however, found to be almostimpossible to obtain a smooth action with this arrangement, asthe pressure on the points, being oblique to their line of move-ment along the guide-grooves, the friction is apt to be u-regular,and so cause a varying motion of the pen or pencil point, and produce Fig.… … Fig. 30. Jin nnfvon outline. In the instrument represented in figs. 29 and30, Iju! parts which traverse the guide-grooves in the plate, (), con-sist of small steel wheels, o,;;, can-icd in the forked ends of the * See page 17.
