Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 65

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 65

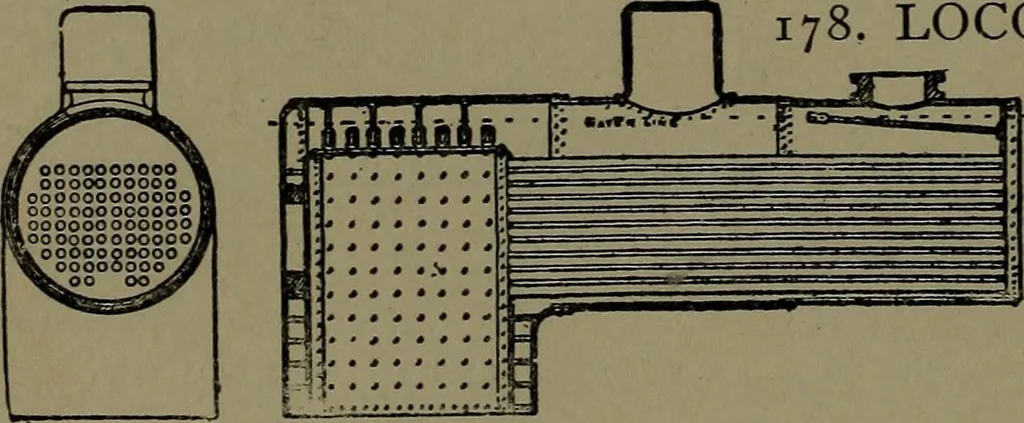

176. INTERNALLYFIRED FLUE BOILER. —The flue and half theshell surface, if exposedto heat, divided by 14,equals horse-power. 177. HORIZONTALTUBULAR BOILER, with steam and dry steampipe. ^, Dry steam pipe.One-half the shell and allthe tube surface, dividedby 14, equals the boilerhorse-power. … 78. LOCOMOTIVE BOILER.— All the fire-box surfaceabove the grate andall the tube surface,divided by 14, equalsthe boiler horse-power.

Mechanical movements
