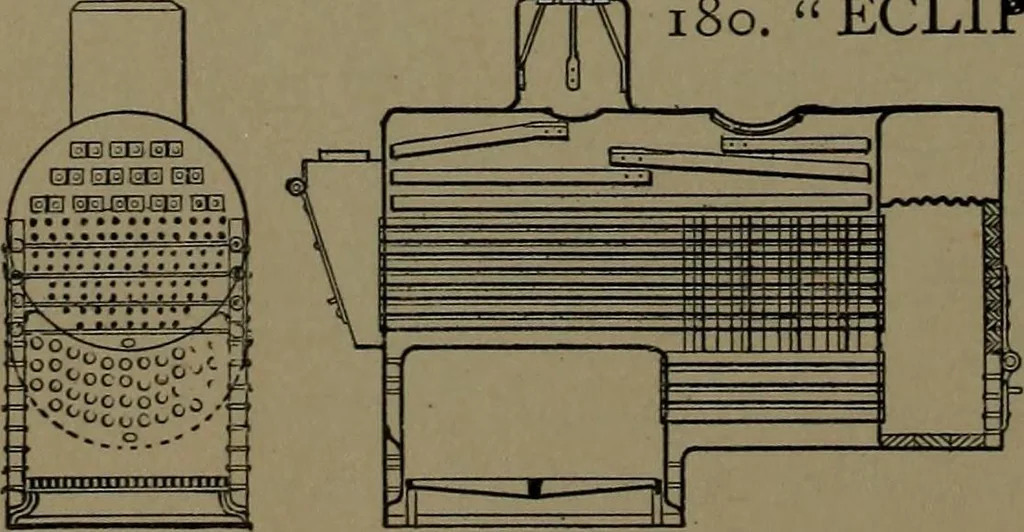

179. MARINE BOILER, withlocomotive fire-box, three flues andreturn tubes. The area of the fire-box, flues, back chamber, and tubes,divided by 12, equals boiler horse-power. m -■ … ECLIPSE RETURN TUBULARMARINE BOILER—All thefire-box, back chamber, directand return tube surface, divid-ed by 12, equals boiler horse-power. STEAM POWER. 59
