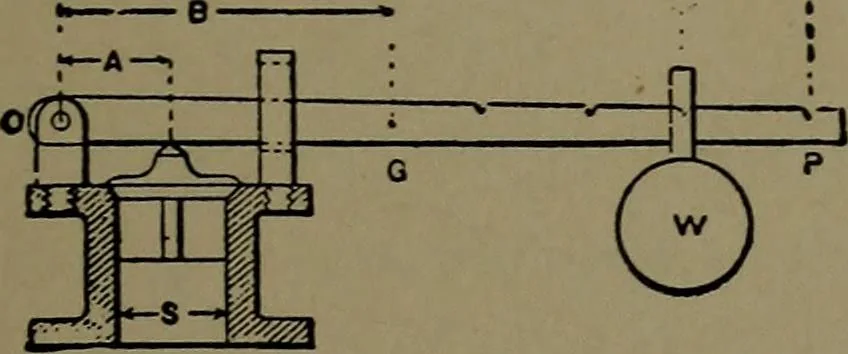

pper valve compensatesfor the differential tension of the spring upon open-ing the valve, thus causing the valve to open widewithout increase of boiler pressure. 218. SAFETY VALVE.—Lever is of the third order. A, Short lever;B, centre of gravity of lever from ful-crum ; C, distance of weight from… … C = S2 X.7854XPX A—(GX B) —(VX A)W
