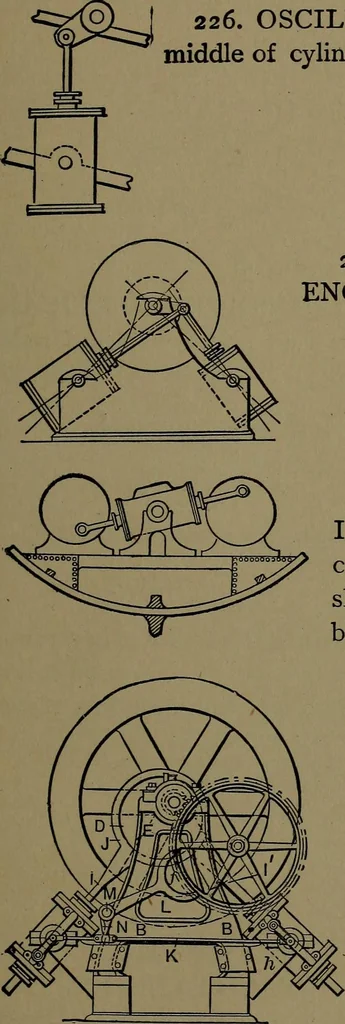

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 76
225. TRUNK ENGINE.—Does away with theslides and cross-head. It is also used for compoundingby using the initial pressure at the trunk end and ex«panding beneath the piston. STEAM POWER. 69 226. OSCILLATING ENGINE, with trunnions onmiddle of cylinder. … 227. COMPOUND OSCILLATINGENGINE.—Cylinders at right angles.
