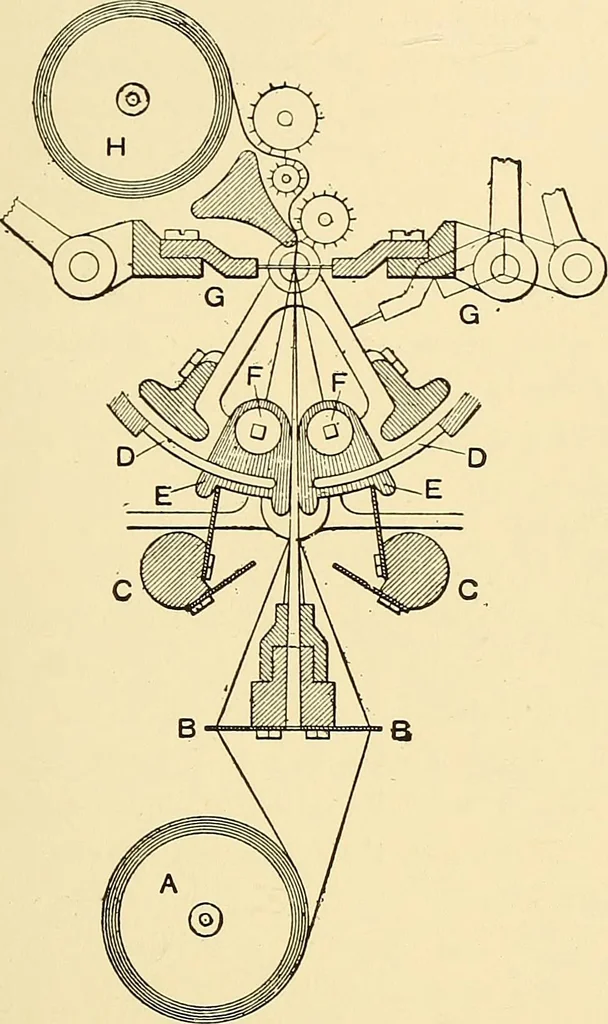

gear. End beams, cross beams, and tie beams are allof solid iron or steel. As in all weaving machines, the warp arrangements are of primaryimportance. In the newer Levers looms there are no warp beams; but THE LACE LOOM 105 for curtain laces and other common forms the beam is still employed.This… … Fig. 533.—Section of Circular Lace Machine A, Bottom roller. u B, Warp guides. c c, Lockers. D D,Ctmbs. E E, Carriages. F F, Bobbins. G G, Point bars.H, Work Roller.
