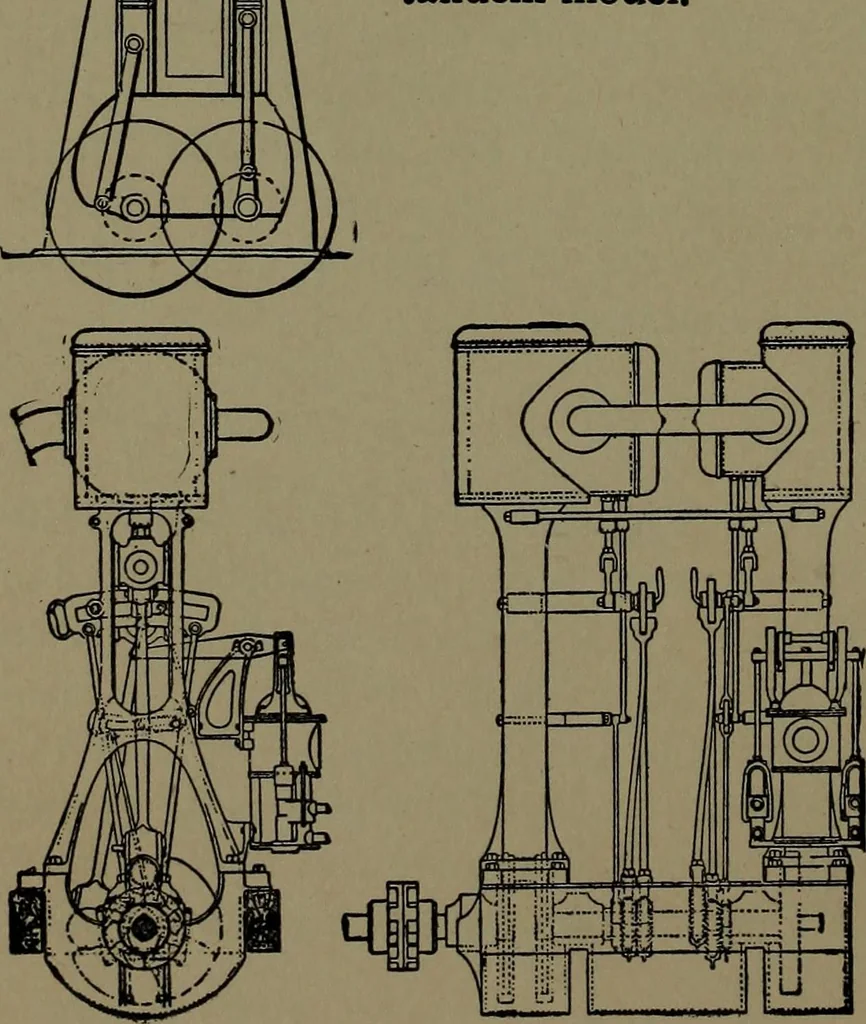

232. TANDEM COMPOUND VERTICALENGINE, with cross-head and two piston rodsfor low-pressure piston ^ .-J U.J ^ v {ri\fl r1( ■i.y 233. COMPOUND ENGINES for twin screws.There may be one or two pair of compound cyUn-ders. The dotted lines represent cylinders of thetandem model. … 234. COMPOUND YACHT ENGINE, Her- reshoff model. Direct receiver pipe. End and longitudinal elevation. STEAM POWER. 7s
