Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)
Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 91

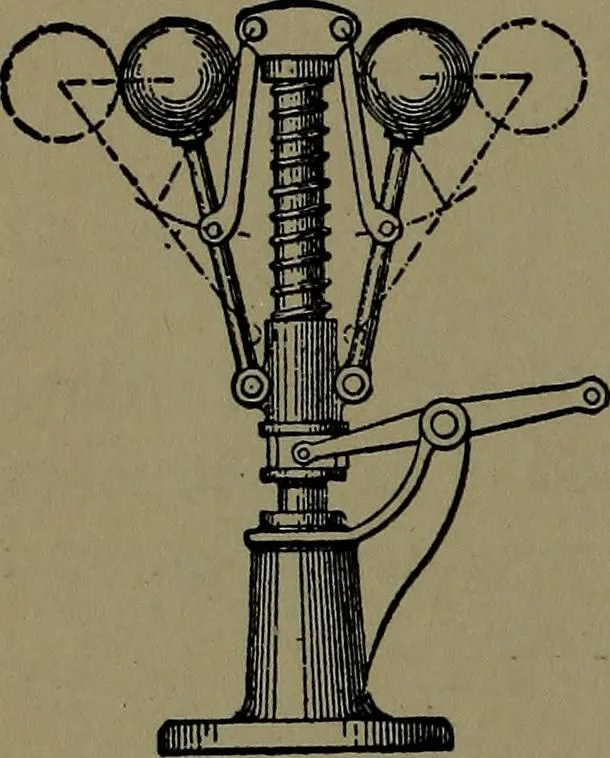

298. CENTRIFUGAL BALL GOVERNOR.—The balls, with arms pivoted to the revolvingspindle, through their connections raise or lower the ^ grooved sleeve on the lower part of the spindle. k^J The yoke of the valve lever rests in the groove andthus controls the valve gear by the varying speed ofthe… … 299. INVERTED GOVERNOR.~The cen-trifugal force of the balls is resisted by a springaround the spindle. The extension of the ballslifts the lever spool through the toggle-jointmovement.
Mechanical movements
