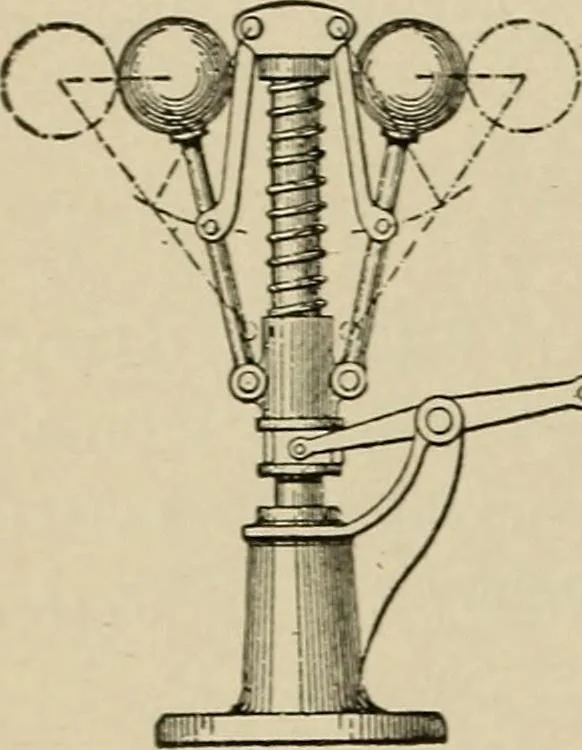

298. CENTRIFUGAL BALL GOVERNOR.—The balls, with arms pivoted to the revohingspindle, through their connections raise or lower thegrooved sleeve on the lower part of the spindle.The yoke of the valve lever rests in the groove andthus controls the valve gear by the varying speed ofthe governor. … 299. INVERTED GOVERNOR.—The cen-trifugal force of the balls is resisted by a springaround the spindle. The extension of the balls2) lifts the lever spool through the toggle-jointmovement.
