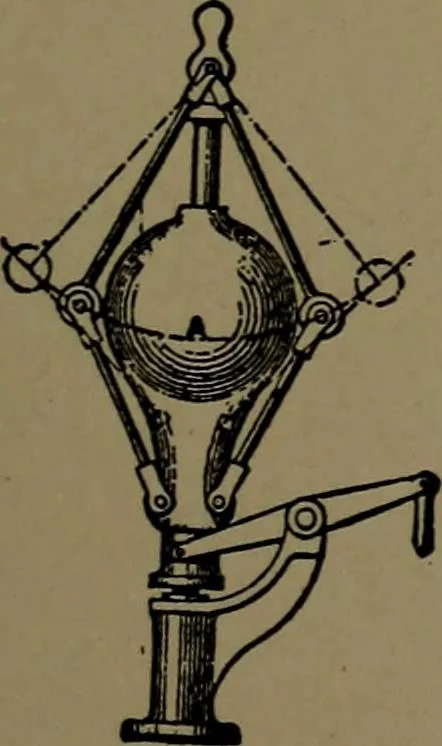

311. PROELL GOVERNOR.—Inaddition to the weight lifted by the cen-trifugal balls, an air dash pot is used inthe line of the central rod connected atthe top by a yoke pivoted to the bell-crank arms. The dash pot with bye-passis shown at the left. … 312. PORTER GOVERNOR.—The cen-trifugal balls lift a central weight, A, by thetoggle-arm connection. A high-speed governor. 88 STEAM POWER.
