Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 96

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 96

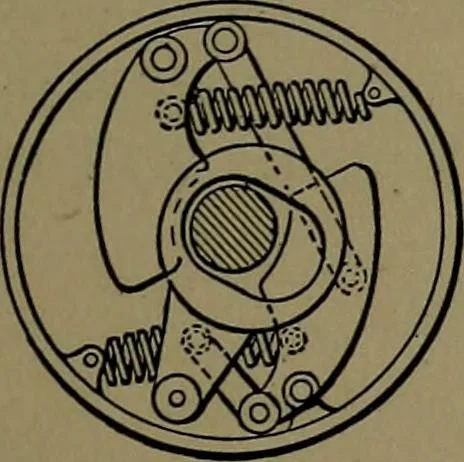

317. CRANK-SHAFT GOVERNOR.— The centrifugal action of the weights, bal-anced by the springs, shifts the position ofthe inner eccentric to vary the throw of themain eccentric. … 318. CRANK-SHAFT GOVERNOR.—The cen-trifugal action of two hinged weights, balanced bysprings, varies the eccentric by moving it towardthe centre by excess of speed. Eccentric is hingedto an arm of the pulley or fly wheel.

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
