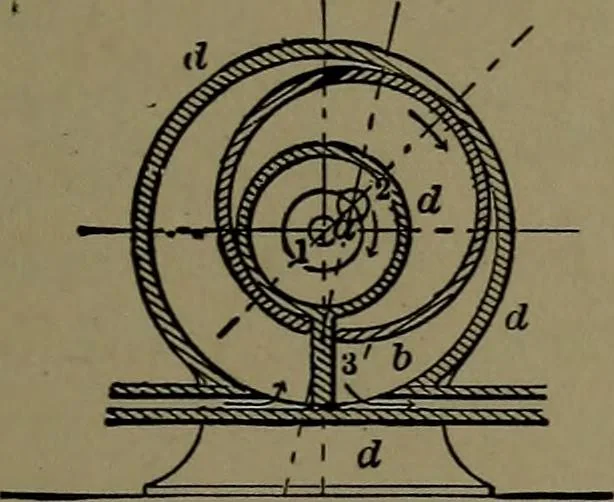

327. DOUBLE SLIDE PISTON ROTARYENGINE.—In this engine the shaft and pistonbarrel are concentric, while the walls of the steamchambers are ovoid. A difl&cult form of con-struction. … 328. LAMB ROTARY ENGINK— An annular cylinder with a fixed partition be-tween the inlet and outlet. The piston is ahollow cylinder with a longitudinal slot,which slides up and down the partition, theoutside of the cylinder wiping the inner surfaceof the shell. The centre of the traversing cylinder…
