Mechanics and heat; a text book for collleges and technical schools (1916)
Franklin, William S. (William Suddards), 1863-1930, Macnutt, Barry, 1878-1936, [from old catalog] joint author · New York, The Macmillan company; London, Macmillan & co., ltd. · leaf 223

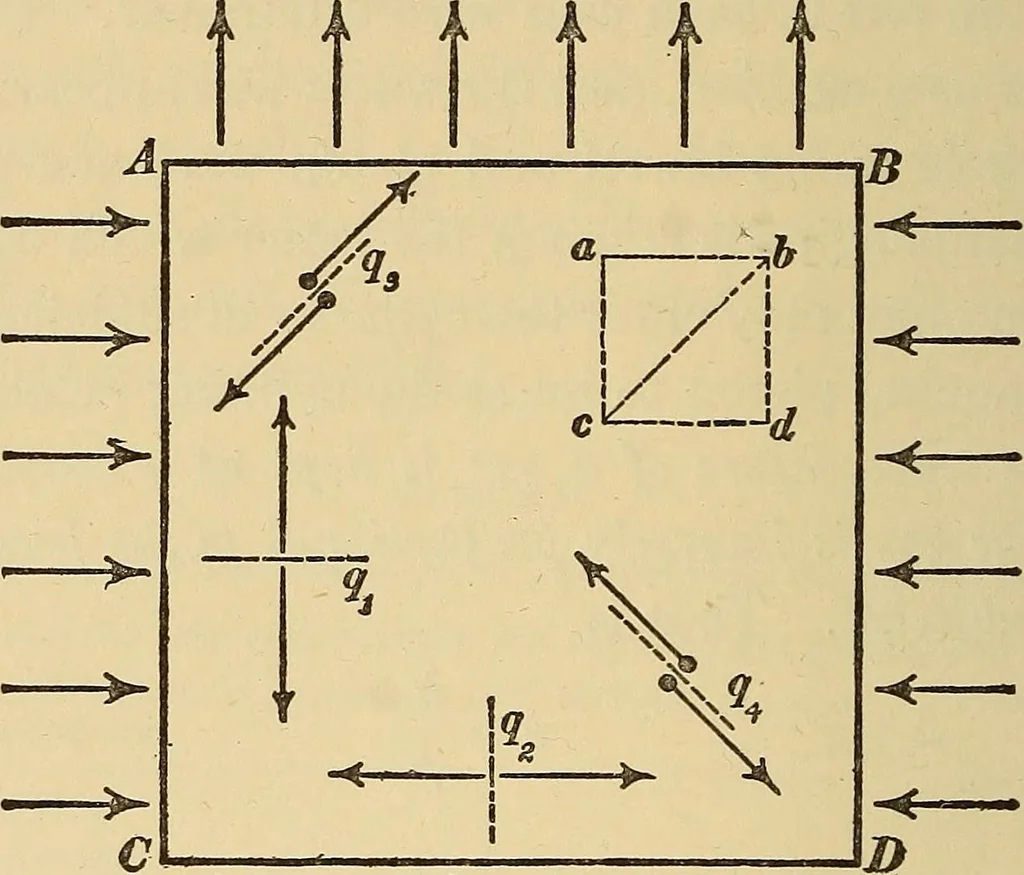

9,and suppose that outward forces (S units of force per unit of area) act upon the facesA B and CD, that inward forces (S units of force per unit of area) act upon thefaces A C and BD, and that no force at all acts on the two faces of the cube whichare parallel to the plane of the paper. Then the… … 4 T Y v f t Fig. 99. follows: A pull of 5 units of force per unit area acts across any plane Qx which isparallel to the faces AB and CD of the cube; a push of 5 units of force per unitarea acts across any plane q2 which is parallel to the faces AC and BD of the cube;a sliding force, or tangential…
