Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 158

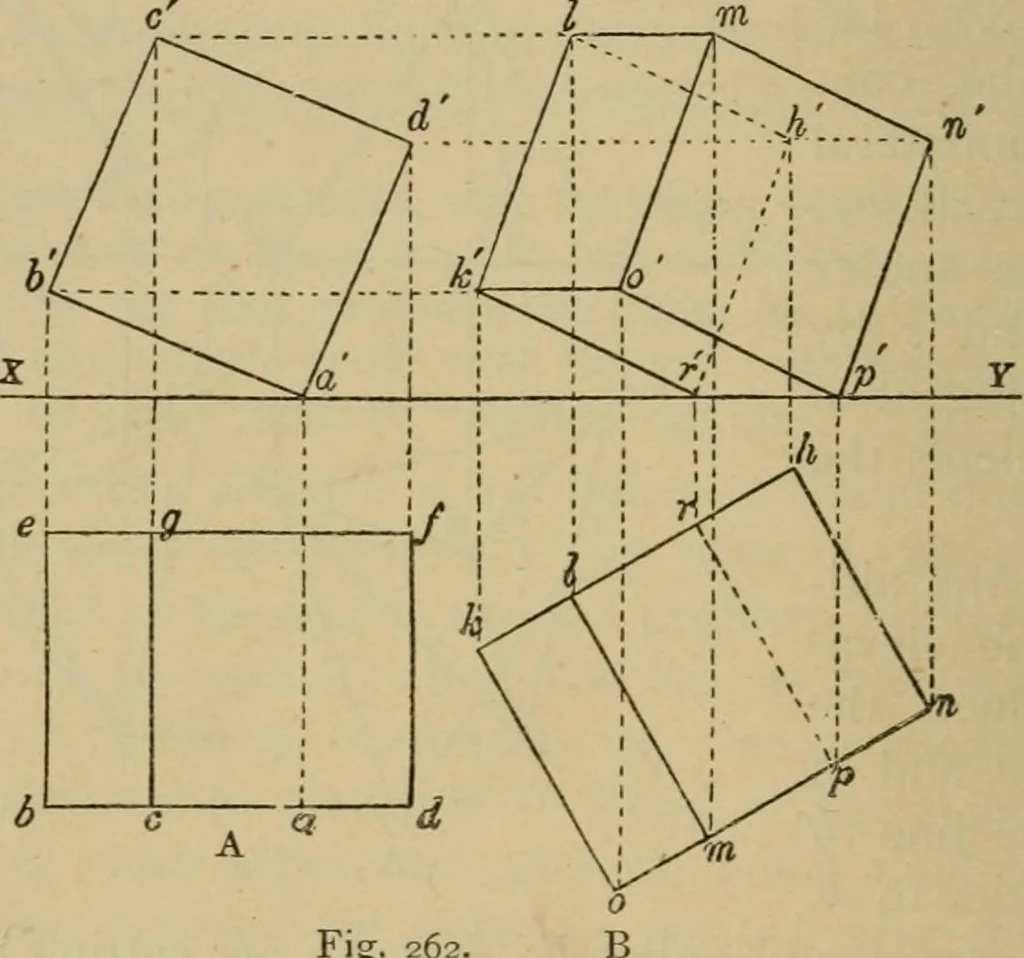

nd are found by dropping lines at right angles to XYfrom the corresponding points in the elevation. 144 ■GEOMETRICAL DRAWING AND DESIGN. 193. To project a hexahedron or cube with edges 3| long, restingon one edge on the H.P., and its base making an angle of 22°with it; the side nearest the V.P. to… … Fig. 26 Below XY draw the line ef i| from it. Draw the lines aa^ bb,cc and dd at right angles to XY. Make eb and fd each equalto dh\ and join hd \ cc cuts efm.g. 194. To project the same solid with its edge stiU resting on the H.P.but inclined to the v.P. at an angle of 60°, the base still…
Geometrical drawing · Design · Drawing
