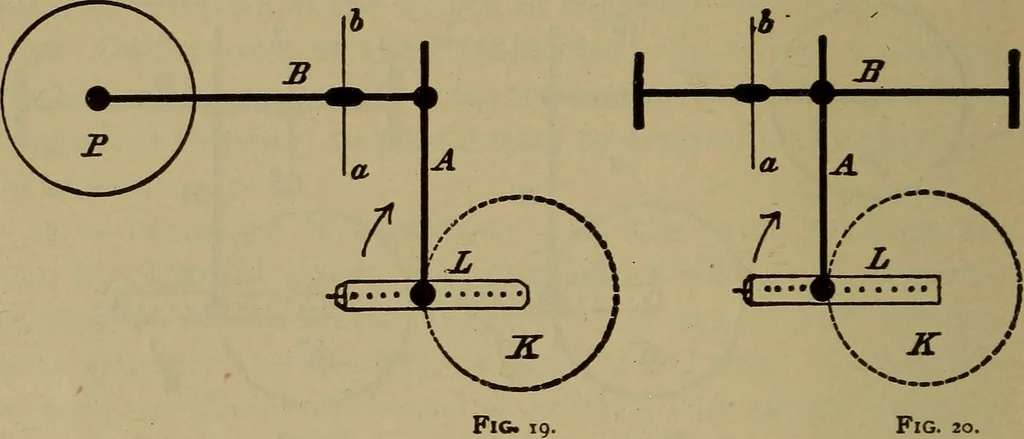

NG, [§38. of the tracing-arm, the extremity a of the axis of the measur-ing-wheel must be further removed from the tracing-arm ; if itbe less, that extremity must be brought nearer to the tracing-arm. Second Test. The tracing-arm is adjusted by means of thevernier on the guide and by means of the… … Fig. 20. with the check-rule, and the results thus obtained are multi-plied into the unit of the vernier corresponding to the areagiven for that particular adjustment by the formula. The fig-ures thus obtained ought to be equal to the calculated area ofthe circles included by the circumferences. If…
