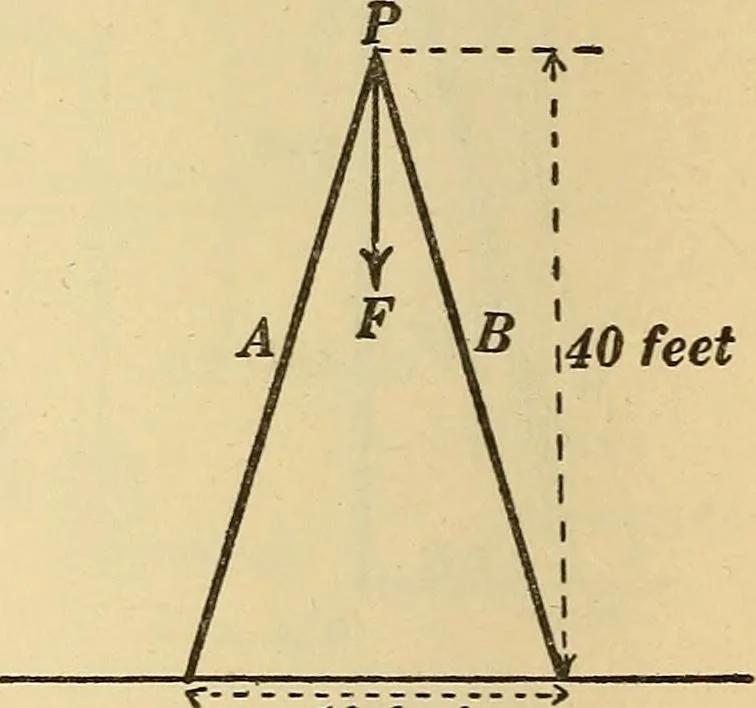

re all the forces under con-sideration are not in one plane) are usuallyquite complicated; fortunately such problemsare not frequently met with in engineeringpractice. To solve this problem, consider the force p,which acts upon each unit area of the conicalsurface of the end of the shaft. The… … 40 feet 10 feet Fig. 49P- 49. The beam in problem 36 consists of two legs A and B asshown in Fig. 49^, and the edgewise view of this double beamis as shown in Fig. ^6p. Find the compression in each of the SIMPLE STATICS. 73 two legs A and B, using the data of problem 36. Ans. 1725pounds. Note. This…
