Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 422

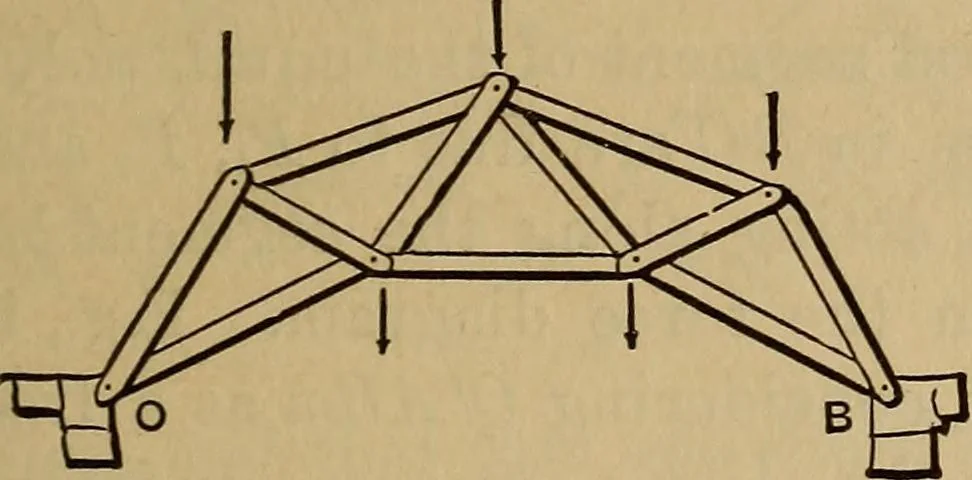

not free to slidelaterally upon them, thereactions at 0 and B de-Fig- 357. pend, in amount and direc- tion, not only upon the equations of Statics, but on theform and elasticity of the arch-truss. Such cases will betreated later under arch-ribs, or curved beams. 332. The Special Equil. Polygon. Its… … 410 MECHANICS OF ENGINEERING. the special equil. polygon because it corresponds to a forcediagram in which the same order of forces has been ob-served as that in which they occur along the beam (fromleft to right here). From the relations between the force
Mechanics, Applied · Engineering · Strength of materials
