Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 423

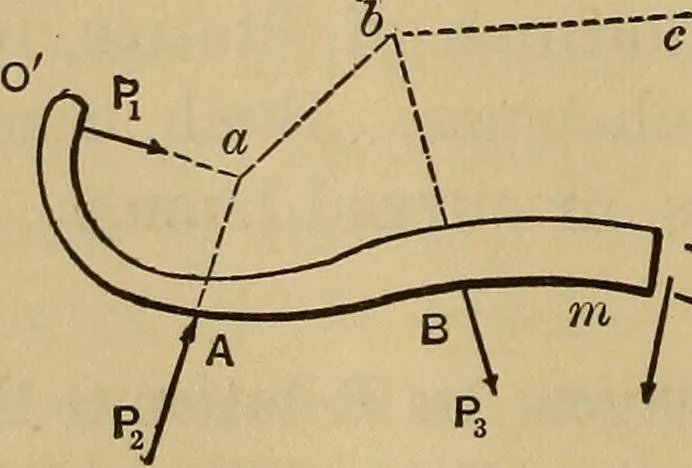

line of action is ab the first segment of the equil. poly-gon. Similarly, the stresses in BG are due to Pb P2 andP3, i.e., to their resultant i?b acting along the segment be,its magnitude being = Ob in the force diagram. E.g., ifthe section at m be exposed, considering OABm as a freebody, we have… … GKAPHICAL STATICS. 411 the same as if i?b the resultant of P]} P2 and P3, acted uponan imaginary rigid prolongation of the beam intersectingbe (see Fig. 361).Bh might be called the anti-stress-result-ant for the portion BC of the beam. We may.-, statethe following : If a rigid body is in…
Mechanics, Applied · Engineering · Strength of materials
