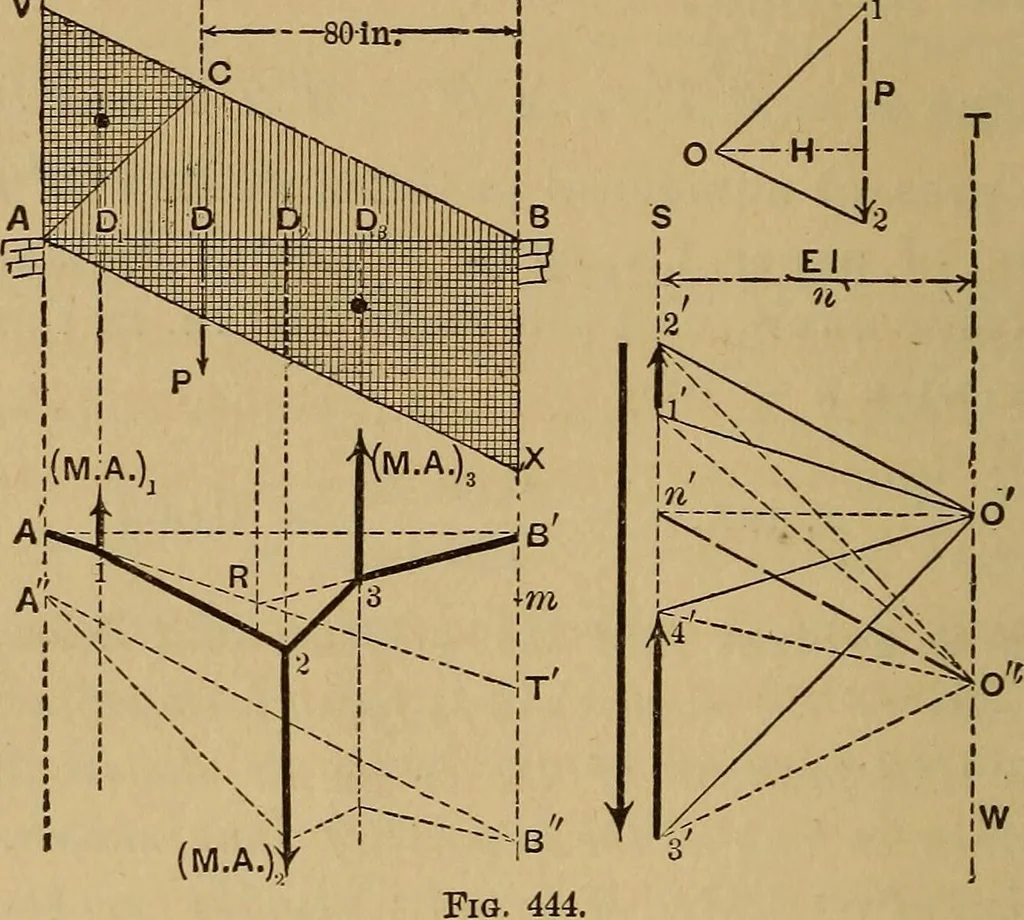

f the negativemom.-area VCA, a triangle whose gravity-vertical passes 492 MECHANICS OF ENGINEERING. through Bl making AD^ % AD; and of another negativemom.-area, the triangle ABX, whose gravity-vertical passesthrough D3 at one-third the span from B. That is, the(ideal) positive load ACB is the… … and B, of the elastic curve AB. These three moment-areas are represented by arrows, properly directed, in thefigure, but must not be confused with the actual loads onthe beam (of which, here, there is but one, viz., P). From the given shapes and dimensions, since ACB =192,000 (sq. in.) (lbs.), we…
