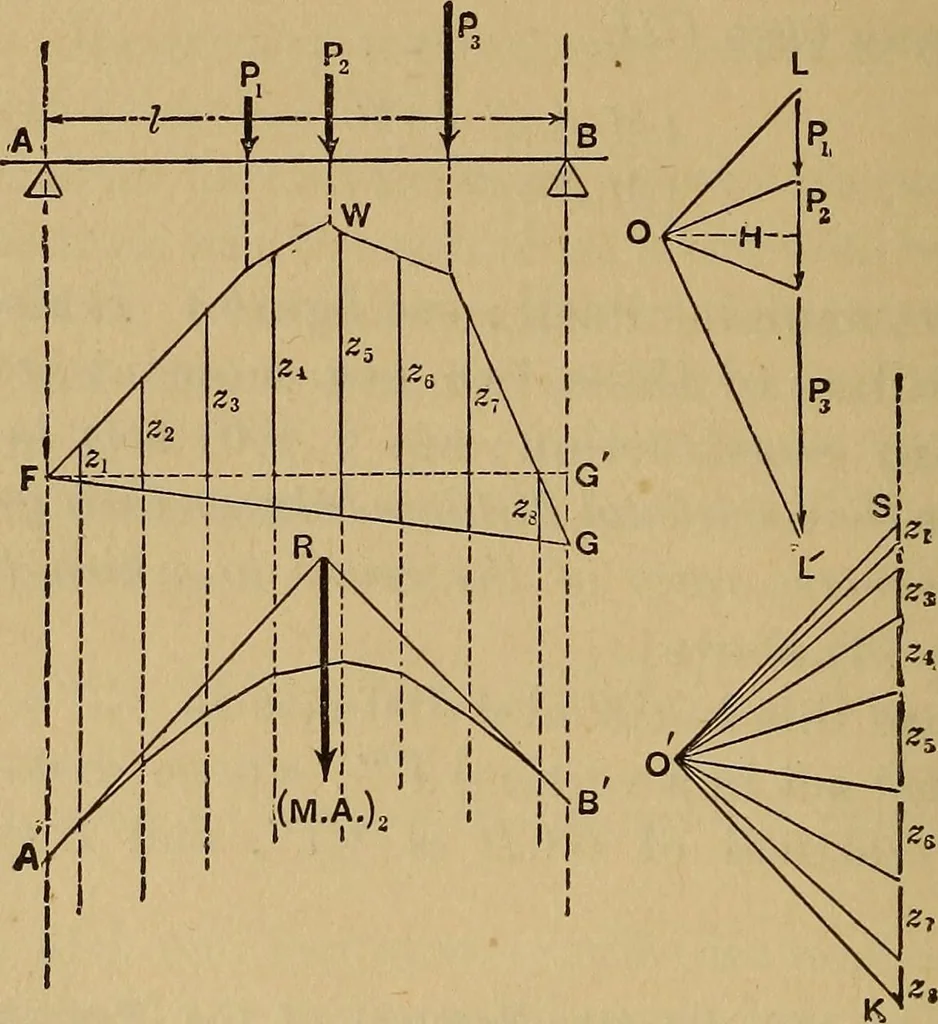

he 500 MECHANICS OF ENGINEERING. oblique polygon in the lower part of Fig. 439 will serveas well as the (upper) one whose abutment-line is thebeam itself, as far as moments are concerned. Hence, Fig. 447, lay off the load-line LL9 take any pole0, with any convenient pole-distance H, and draw… … Pig. 447. vertical through the middle of each. The lengths zlf z2>etc., on these verticals, intercepted in the moment-area,are proportional to the corresponding strips of moment-area, each of width=ds, and of an amount =HzAs. Form a load line, SK, of the successive as, and withany pole 0, draw…
