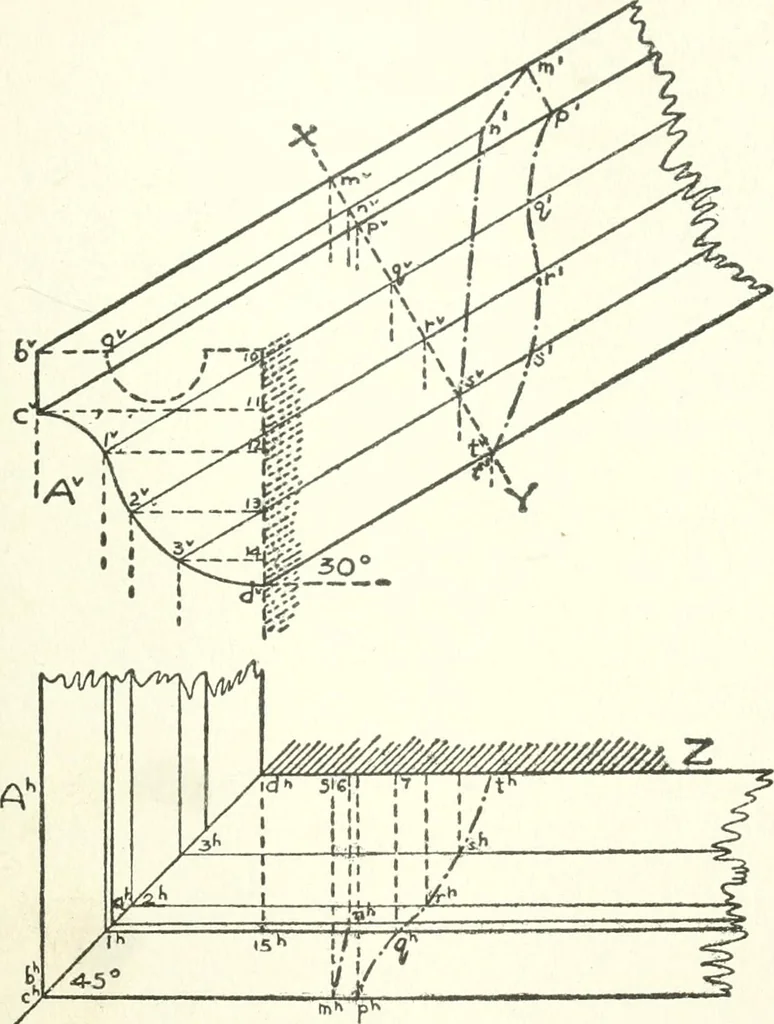

s-sectionrequired. As the edges of the moulding are parallelto V, the cross-section plane will be perpen-dicular to V, and will be seen edgewise on V.It may be taken at any convenient distance fromthe gutter, as in the position X-Y. This planewill intersect the edges drawn from a, b, etc.,in the… … Fig. 76A. Finding Cross-Section of Moulding to Miter with Gutter. on the curved outline of the gutter. The planeX-Y cuts these lines at the points q, r, and s.The plan of the section cut by plane X-Y is 123 MECHAXICAL DEAPTING not the true size and shape, since j)lane X-Yis not parallel to H…
