Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 523

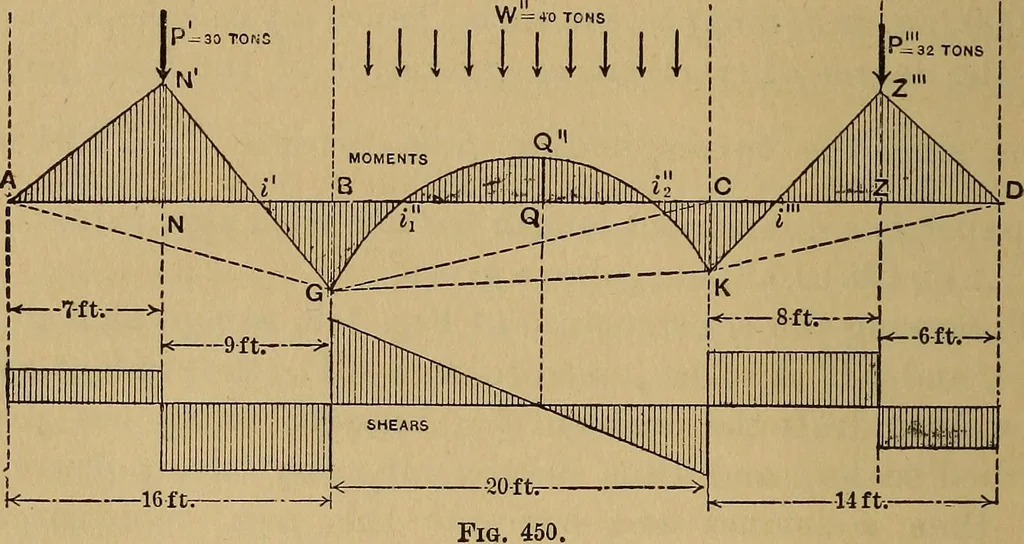

results are best indicated by the aid ofFig. 450. Following the items of § 402, we find [(3) § 397]that the moment at B, using (M. A.y, is M 2X106,200 = g85 inch.toM240 m. 510 MECHANICS OF ENGINEERING. [or, using (M. A.y, \MB = 2xg00=893 in. tons.] Similarly, MG = 2x^800 = 840 in. tons,[or, using… … Selecting a value H — 20 tons for the pole-distance ofthe successive force-diagrams, (the scale of distances being5 ft. (60 in.) to the inch we have [(3) § 397] 20 x ~BG = MB = 889in.-tons .-. BG = 44.4 in. of actualdistance, or 0.74 in. of paper ; also 20 x GK = MQ = 837.8in.-tons .*. GK = 41.89…
