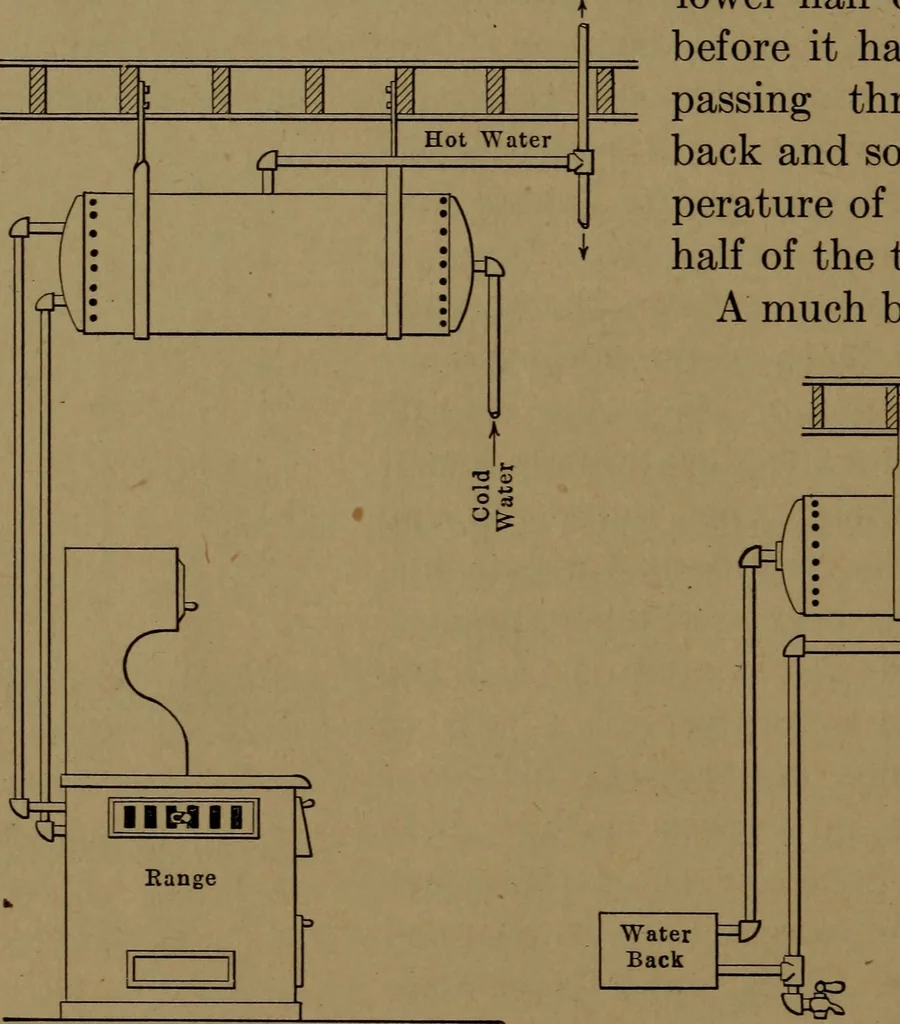

is beingheated. The lower pipe at the left-hand end is conducting thewater to the water-back and it is being returned to the range boilerby the upper pipe at the same end. When the hot water isdrawn from the top of the range boiler by the hot-water pipe,the entering cold water mixes with hot water… … d: ^ . Hot ^ ^ _ColdWater Fig. 117.—Method of con-necting the vertical range-boilerin a horizontal position. Fig. 118.—Horizontal range-boiler sus-pended from the ceiling. purpose is that indicated in Fig. 118. This is a tank madeparticularly for such a location. The cold water enters at thebottom…
