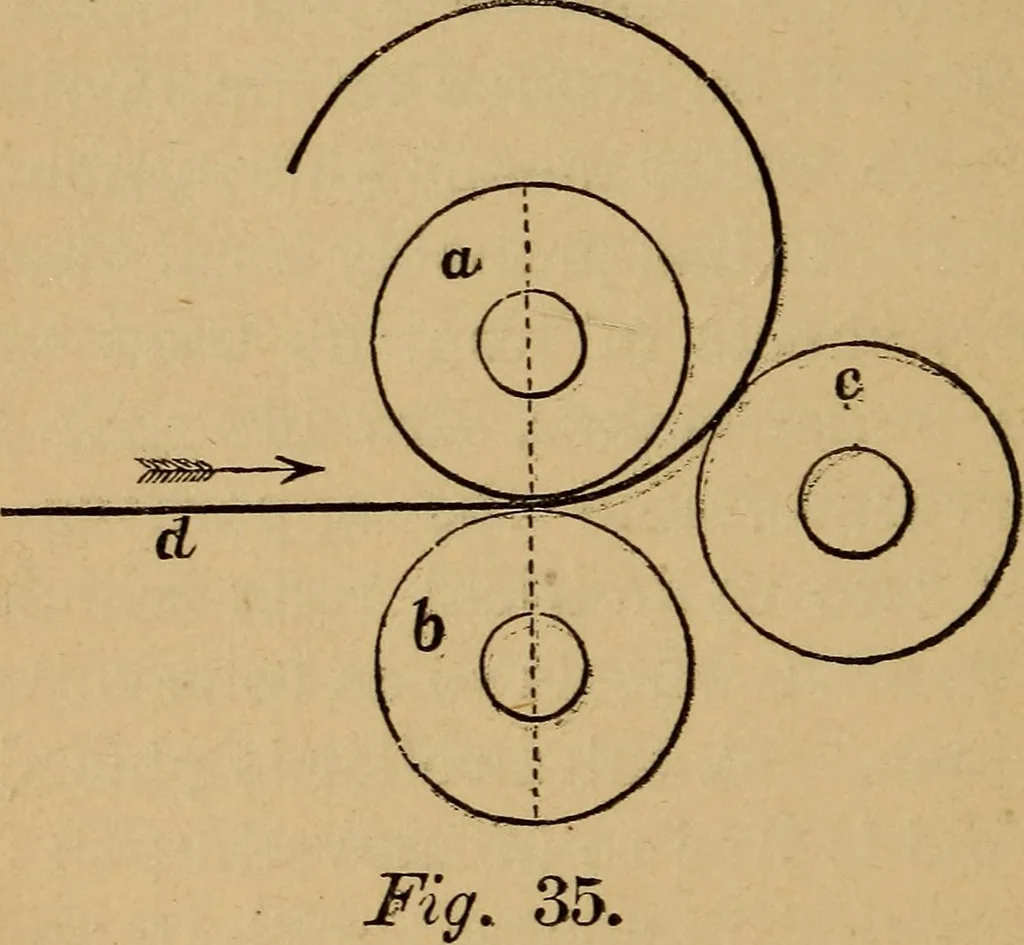

in a lever ofthe iirst order, or as in bending a rod across a fixedpoint. In coiling wire a machine can be con-structed upon this same principle, and instead ofrolls, as employed for plates, narrow wheels maybe used, geared together so as to run in oppositedirections, and grooves are made upon… … one side of this wheel pressing the wire in a lateraldirection determines the pitch of the coil. In thesketch, a and b represent the two wheels geared COILING WIRE. 159 together, and c the loose wheel; d is the wire asit is received in the direction of the arrow and is-sues in the curved form as…
