Maurer, Edward R. (Edward Rose), b. 1869 · New York : John Wiley & sons, inc.; [etc., etc.] · leaf 340

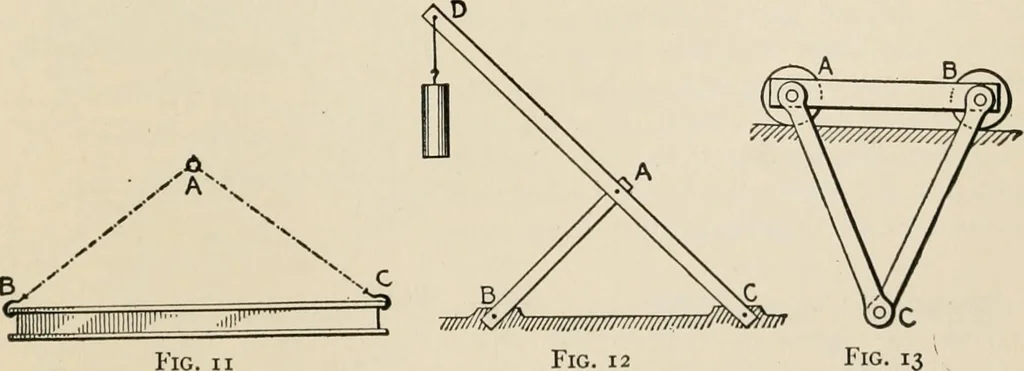

lbs. and B 100 lbs.; the diameter of ^ is 6 ft. and of B 10 ft.;a = 30°. Determine the pressures on the planes and that between the cylinders. 27-(ii). Fig. 10 represents two wedges; a = 70° and 0 = 40°. A push P of1000 lbs. can sustain what load Q if all rubbing surfaces are smooth? 28-(ii). The… … Fig. II 29-(ii). Two bars AB and CD (Fig. 12) are connected by a pin at A and to afloor by pins B and C. BC = 8 ft., AB = AC = $ ft., and AD = 8 ft. A weightof 100 lbs. is suspended from D. Determine the pin pressures at yl, B, and C. 30-(ii). A carrier is arranged as shown in Fig. 13. The bar AB…
Mechanics
