Maurer, Edward R. (Edward Rose), b. 1869 · New York : John Wiley & sons, inc.; [etc., etc.] · leaf 344

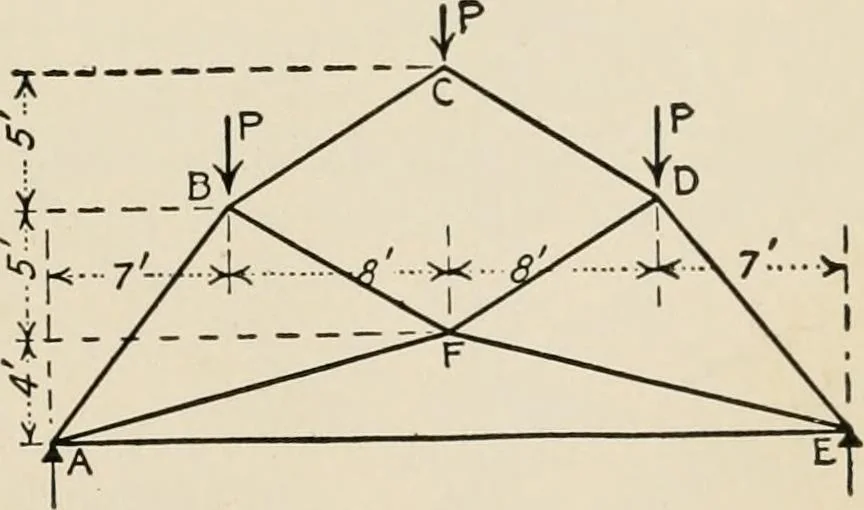

Fig. 28 Fig. 29 46-(i5). The truss represented in Fig. 28 is supported at A and D; CE = 12 ft.,Pi = 1000 lbs. and P2 = 2000 lbs. Deter-mine the amount and kind of stress ineach member. 47~(i5)- The truss represented in Fig. 29 is supported at F and D; BF = CE= 12 ft.. Pi = P2 = 2000 lbs., and P3 =… … Fig. 30Determine the amount and kind of stress in each member.
Mechanics
