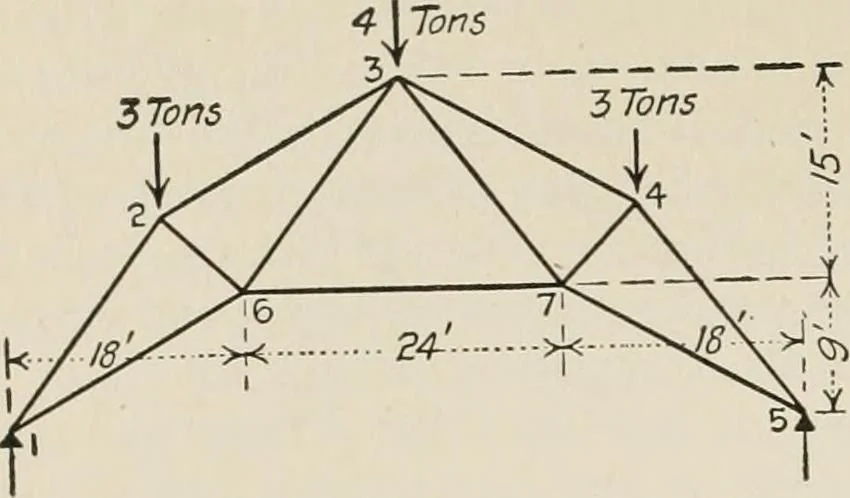

Fig. 3149-(i5). The truss represented in Fig. 31 is supported at each end; span = 80 ft. 330 … Fig. 32 I, 2, 3, 6 and the points 3, 4, 5,vertices of parallelograms. Draw a stress dia-gram for the truss loaded as shown, and make arecord of the stresses in the members. 52-(i6). Solve Prob. 47 graphically. 53-(i7). Fig. ;^^ represents a crane consistingof three members, a boom AC, a. brace AD,…
