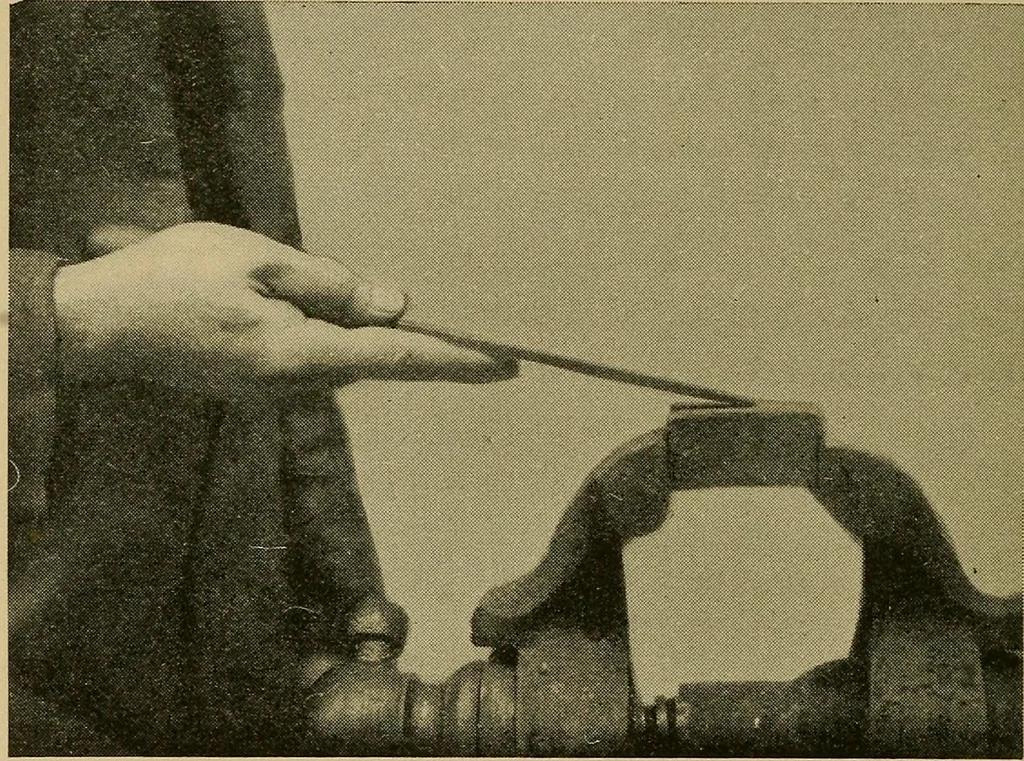

Edges. 94 METAL-WORK scraping edge (Fig. 35) should then be ground slightly roiuid,and the two flat surfaces rubbed on a fine oilstone. Thescraper is then prepared for setting the edge, which is doneby rubbing upon an oilstone whilst the scraper is held in avertical position. To test the cutting… … Fm. 36. blade underneath, as in Fig. 36; then place the left hand overthe scraper, firmly grasping the tool and the index-finger ofthe right hand (see Fig. 37). The high parts of the work,which are to be scraped off, are discovered by rubbing on astandard surface plate which has been lightly…
