Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 52

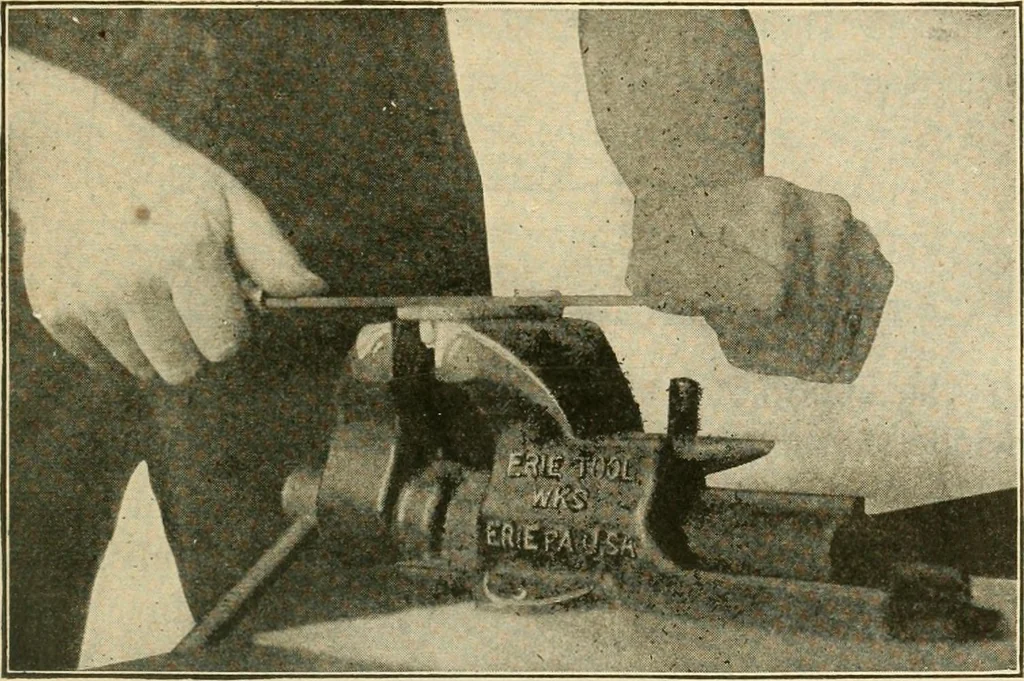

Cant-File Crossing Fig. 47—The various-shaped files that are on the market The double-cut file has two sets of teeth, each at a dif-ferent angle. The difference between the double- andsingle-cut file is depicted in Fig. 46. The teeth in a The Use of Miscellaneous Tools 51 double-cut file are… … Fig. 48—Improper method of holding a long, thin file A cross-section of all the common shapes is shown inFig. 47. Files are made in many different lengths, theshorter type being used for fine work while the larger Fig. 49—How a thin file will bend when held in the manner shown in Fig. 48 ones are…
Machine-shop practice · Handicraft
