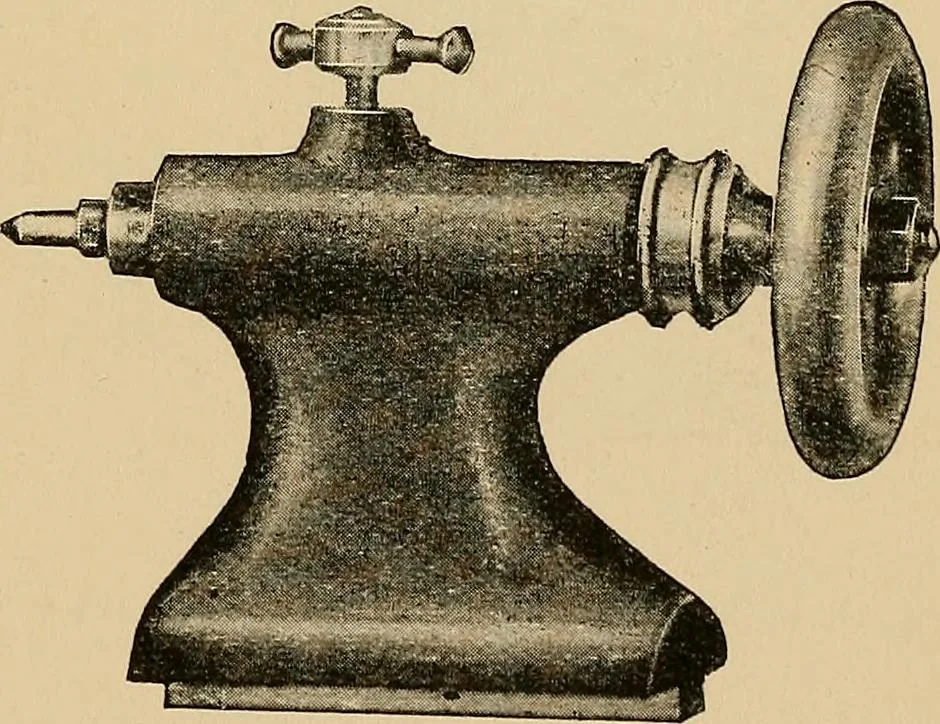

y the hand-wheel. This arrangementis a convenient method ofmaking the finer adjust-ments of the centre to thelength of the work. It willbe observed that by turningthe hand-wheel the centreadvances to the correctposition, on reaching whichit is locked by the set-screw. To prevent the barrel from… … Fig. 167. 182 METAL-WORK The Slide Rest (see Figs. 169 and 170) consists of a toolpost or head which secures the tool. This head can berevolved on the centre bolt, and so present the tool to the workat any deshed angle. The centre bolt secures the head to thetop sliding carriage (called the…
