Metal-work; a handbook for teachers and students (1914)
Adam, Hugh M. [from old catalog], Evans, James Humphrey, [from old catalog] joint author · New York, Longmans, Green and co.; London, E. Arnold · leaf 207

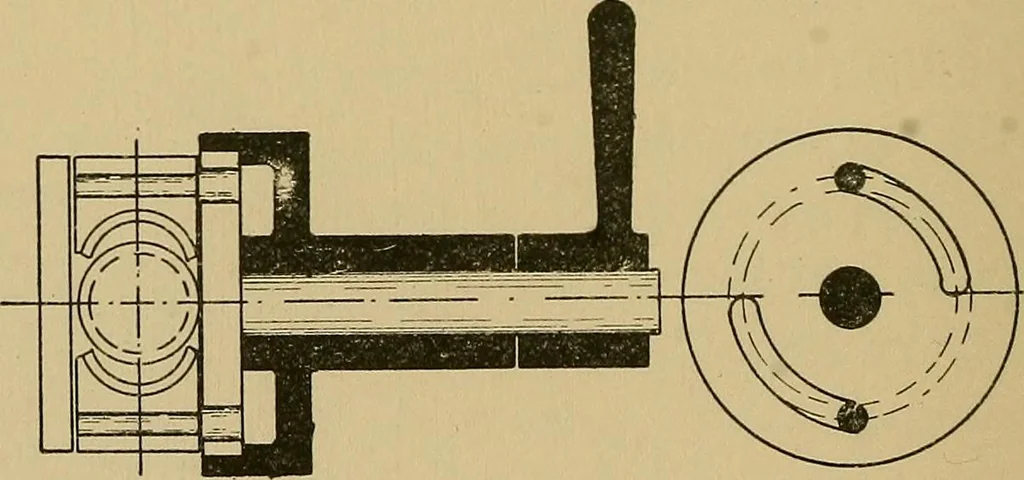

Fia. 176.—Alternative Method of connecting Saddle to Lead-Screw. on the quadrant which is fitted to the top end of the lathe.This quadrant is free to move through an angle of 90 degreesabout the lead-screw, and is fitted with two slots, into which,at any point, studs can be bolted to accommodate…
Metal-work
