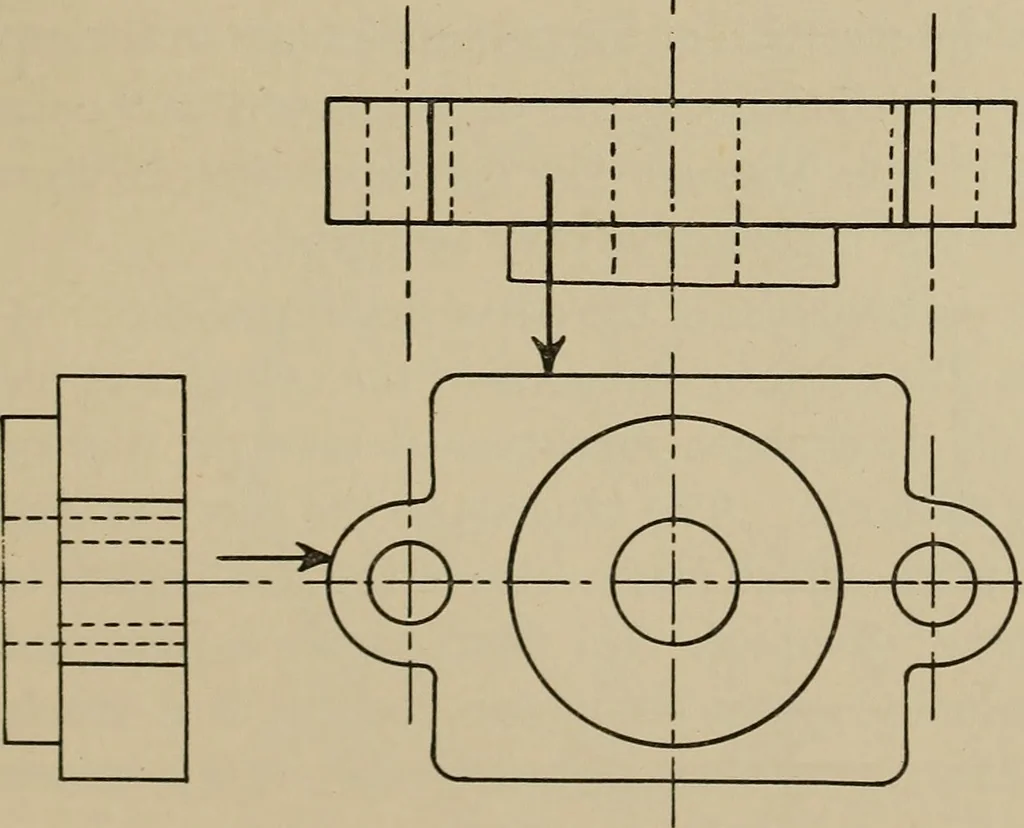

r .^-^ … > 110 Notes on Practical Mechanical Drawing points that lie neither upon the same right section, or uponthe same right line element. To study the curve in projection, draw a cylinder in thefirst angle (as Fig. 29) with axis parallel to the vertical plane.Assume a point to be at o, and to move…
